Rod, Piston And Connecting: Removal: Removal
WARNING: This page is about a different variant/trim than selected.
- Remove the engine. Refer to REMOVAL .
- Remove the cylinder head. Refer to CYLINDER HEAD, REMOVAL .
- Remove the balance shaft module. Refer to PUMP, ENGINE OIL .

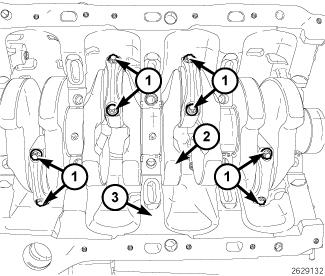

- Remove bolts (1) and the connecting rod bearing caps.
- Carefully push the piston through the bore and use care not to damage the oil cooling jet or allow the end of connecting rod to hit the cylinder wall.
