Module, Compass: Installation: Installation
WARNING: This page is about a different car, the 2012 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

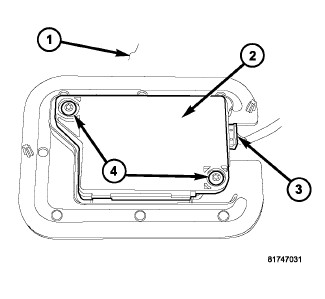

- Position the Remote Compass Module (RCM) (2) into the bracket on the upper side of the headliner (1).
- Install the RCM retaining screws (4).
- Connect the electrical connector (3).
- Install the headliner assembly. Refer to HEADLINER, INSTALLATION .
- Connect the battery negative cable.
- Perform the Compass Variance Adjustment. Refer to MODULE, COMPASS, STANDARD PROCEDURE .
- Perform the Manual Compass Calibration. Refer to MODULE, COMPASS, STANDARD PROCEDURE .
- Verify proper compass operation.
