All Wheel Drive Control Module: Installation: Installation
WARNING: This page is about a different car, the 2013 Jeep Patriot and 2013 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.

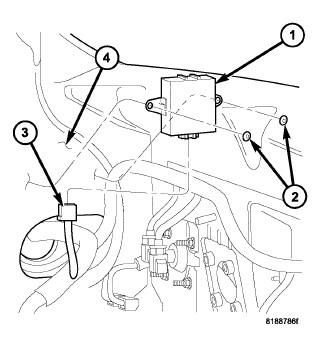

- Plug ECC module in (3).
- Move into place, install bolts (2) and tighten to 11 N.m (97 in. lbs.).
- Install the left front kick panel. Refer to PANEL, COWL TRIM, SIDE, INSTALLATION .
