Cable, Shift: Installation: Installation
- Insert the shift cable end upward into hole through the floor pan.
- With the shift cable coiled above the passenger side heat shield, squeeze the cable housing lock hub through the widest point between the floor and the steering rack.
- Guide the shift cable forward over the steering gear and toward the transaxle.
- Install the heat shield above the steering rack.
- Lower vehicle to the floor.
Courtesy of CHRYSLER GROUP, LLC

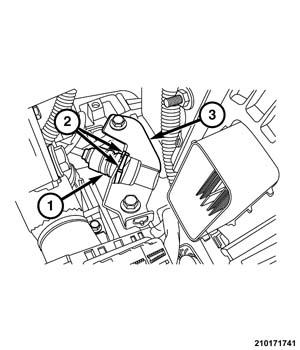

- Engage the clips (2) to hold the gear shift cable (1) to the bracket (3) on the transaxle.
- Under the battery tray, snap the shift cable end onto the manual lever on the transaxle.
- Install the air cleaner/engine cover. Refer to 2.0L BODY, AIR CLEANER, INSTALLATION
, or 2.4L BODY, AIR CLEANER, INSTALLATION
.
Courtesy of CHRYSLER GROUP, LLC

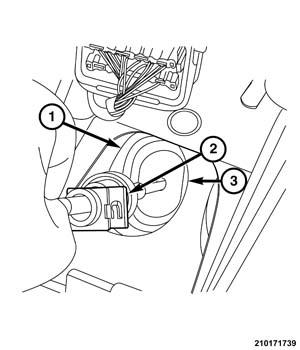

- Engage the gear shift cable (2) floor grommet (1) into the access hole (3) in the floor.
- Connect the shift cable onto the shifter.
- Install the center floor console onto the vehicle. Refer to CONSOLE, FLOOR, INSTALLATION
.
- Connect the battery negative cable.
- Close the hood.
