Starting System (Service Information): Starter: Installation: Gas

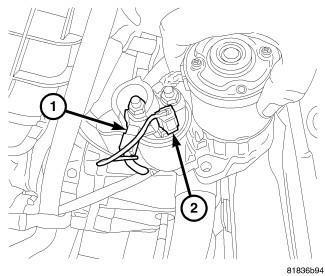

Fig 1: Starter Electrical Connectors

Courtesy of CHRYSLER GROUP, LLC

Connect starter motor wiring. Tighten battery cable nut to 10 N.m (90 in. lbs.).

Fig 2: Rotating Starter
Courtesy of CHRYSLER GROUP, LLC
Install starter motor into vehicle lower engine compartment.

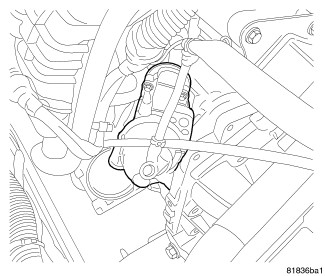

Fig 3: Installing Starter
Courtesy of CHRYSLER GROUP, LLC

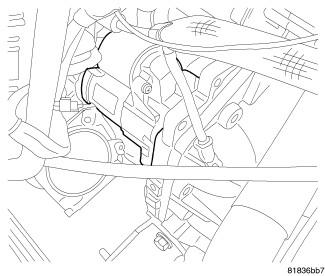

Loose install starter into position.

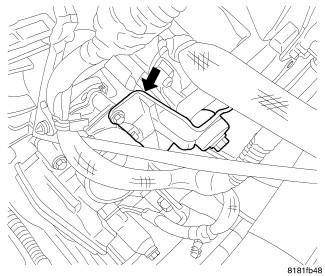

Fig 4: Throttle Body Bracket
Courtesy of CHRYSLER GROUP, LLC
Install throttle body
Install throttle body bracket.

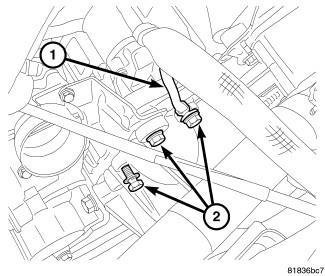

Fig 5: Mounting Bolts
Courtesy of CHRYSLER GROUP, LLC
Install starter motor mounting bolts and tighten to 54 N.m (40 ft. lbs.).

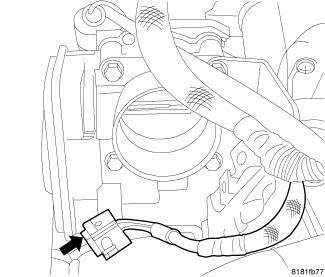

Fig 6: Throttle Body Electrical Connector
Courtesy of CHRYSLER GROUP, LLC
Connect throttle body electrical connector.
Install air cleaner box and inlet tube.
Connect battery negative cable.
