B1B56-1ST-Row-Passenger-SEATBELT-Sensor-Circuit Open: Notes

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .

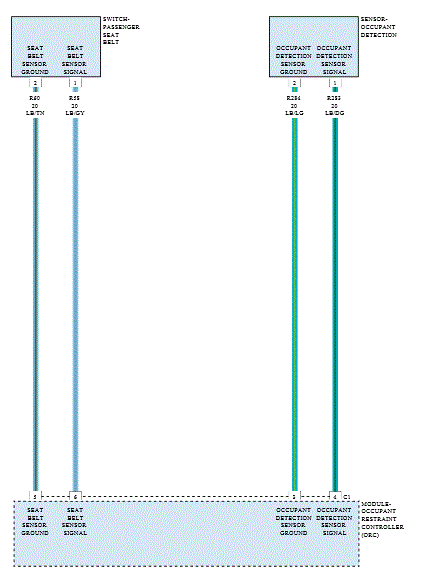

Fig 1: Passenger-Seat-Belt-Sensor Circuit Diagram
GC0168289Courtesy of CHRYSLER GROUP, LLC
