Cable, Shift: Installation: Installation

Fig 1: Shifter Cable

Courtesy of CHRYSLER GROUP, LLC

Install the shifter cable and grommet (1, 2) through the bulkhead and into the engine compartment.

Fig 2: Clip And Cable
Courtesy of CHRYSLER GROUP, LLC
Install the cable (2) into the bracket (1).

Fig 3: Identifying Shifter Cable & Clip
Courtesy of CHRYSLER GROUP, LLC
Rotate the shifter cable retention collar (2) clockwise at cable to lock into place.
Tighten the hold down bolts at the air bag module. Refer to MODULE, OCCUPANT RESTRAINT CONTROLLER, INSTALLATION .
Install the shifter. Refer to SHIFTER, FLOOR CONSOLE, INSTALLATION .

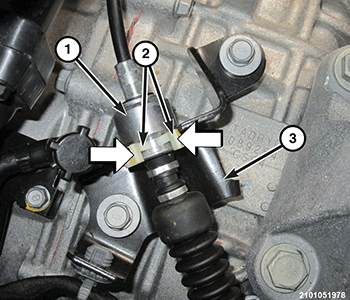

Fig 4: Cable, Bracket & Tabs
Courtesy of CHRYSLER GROUP, LLC
Install the shifter cable (1) into the bracket (3).

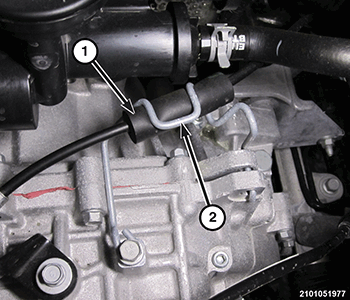

Fig 5: Shifter Cable Housing & Routing Bracket
Courtesy of CHRYSLER GROUP, LLC
Install the shifter cable housing (1) into the routing bracket (2).

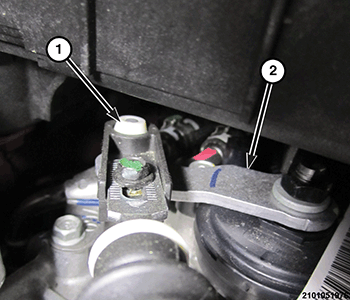

Fig 6: Shifter Cable End & Manual Lever
Courtesy of CHRYSLER GROUP, LLC
Attach the shifter cable end (1) to the manual lever (2).
Connect the negative battery cable.
Adjust the shifter cable. Refer to CABLE, SHIFT, ADJUSTMENTS .
Install the air cleaner body. For 2.0L, refer to BODY, AIR CLEANER, INSTALLATION . For 2.4L, refer to BODY, AIR CLEANER, INSTALLATION .
