Plug, Glow: Installation: Installation

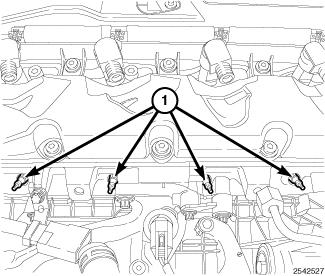

Fig 1: Identifying Glow Plugs
GC0138480Courtesy of CHRYSLER GROUP, LLC
  1. Clean glow plug bay and install glow plug.
  2. Install glow plugs (1). Tighten glow plugs to 11 N.m (97 in. lbs.).

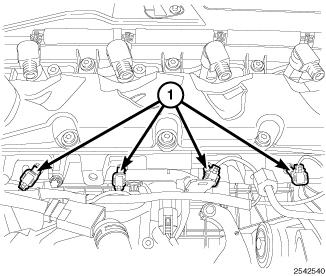

    Fig 2: Identifying Glow Plug Harness Connectors
    GC0138479Courtesy of CHRYSLER GROUP, LLC
  3. Connect glow plug wire harness connector (1).

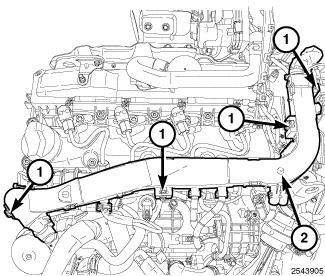

    Fig 3: Lock Tabs & Engine Wire Harness
    GC0137898Courtesy of CHRYSLER GROUP, LLC
  4. Connect the glow plug four way harness connector.
  5. Position the wire harness (2) and push down to lock tabs (1).

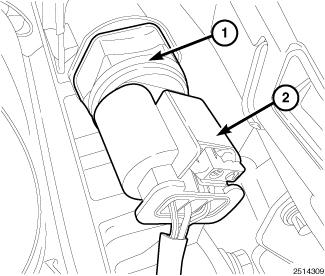

    Fig 4: Identifying Fuel Rail Pressure Regulator Harness Connector
    GC0138068Courtesy of CHRYSLER GROUP, LLC
  6. Connect the fuel rail pressure sensor harness connector (2).
    Fig 5: Quarter Turn Lock Tabs & Air Inlet Duct
    GC0137828Courtesy of CHRYSLER GROUP, LLC
  7. Install engine cover.
  8. Connect the negative battery cable.
  9. Install air inlet duct (2) and lock the quarter turn lock tabs (1).
