Case Assembly, Differential: Installation: Installation

WARNING: This page is about a different car, the 2012 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

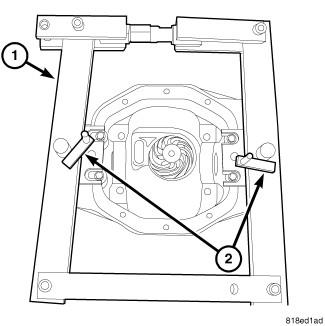

Fig 1: Identifying Spreader & Spreader Retainers

Courtesy of CHRYSLER GROUP, LLC

NOTE:

If differential bearings or differential case are replaced, differential bearing preload and gear backlash must be adjusted.

Install Spreader (special tool #W-129-B, Spreader, Differential) (1) and Spreader Retainers (special tool #W-129-1, Adapters, Spreader) (2) on Spreader Adapters (special tool #9959, Plates, Spreader) and tighten spreader turnbuckle finger-tight.

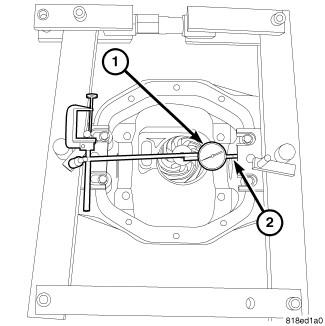

Fig 2: Identifying Dial Indicator & Indicator Plunger
Courtesy of CHRYSLER GROUP, LLC
Attach Dial Indicator (special tool #C-3339A, Set, Dial Indicator) (1) to spreader retainer stud. Load indicator plunger (2) against opposite side of the housing and zero the indicator
Spread the differential case 0.34 mm (0.013 in).
CAUTION:
Never spread the differential housing over 0.34 mm (0.013 in). Failure to follow these instructions will damage the housing.

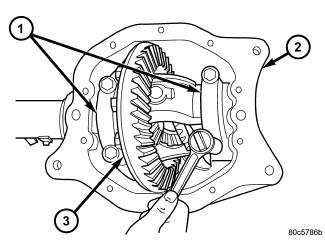

Fig 3: Removing/Installing Differential Case, Bearing Cups And Shims
Courtesy of CHRYSLER GROUP, LLC
Remove dial indicator.
Install differential case (1) bearing cups (2) and shims into housing.
Install bearing caps and loosely install bolts.
Loosen turnbuckle remove spreader retainers and spreader.

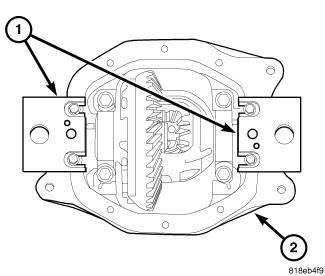

Fig 4: Removing/Installing Spreader Adapters On Differential Housing
Courtesy of CHRYSLER GROUP, LLC
Remove spreader adapters (1) from differential housing (2).

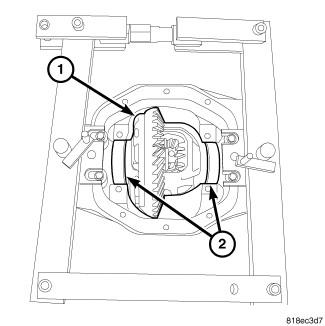

Fig 5: Bearing Cap Bolts
Courtesy of CHRYSLER GROUP, LLC
Tighten bearing cap (1) bolts in a criss-cross pattern to 54-68 N.m (39-50 ft. lbs.).
Install right axle shaft and half shafts.
Install differential housing cover.
