Shield, Heat: Installation: Installation

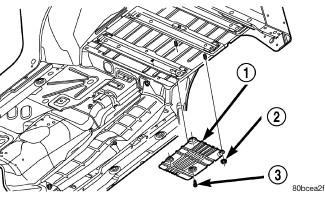

Fig 1: Muffler Heat Shield - Rear

Courtesy of CHRYSLER GROUP, LLC

1 - MUFFLER HEAT SHIELD - REAR

2 - NUTS

3 - SELF TAPPING SCREWS

Position the heat shields to the floor pan or the frame and install the screws or nuts

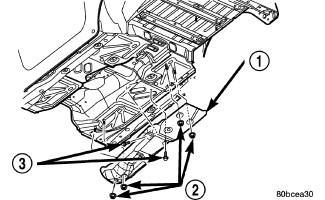

Fig 2: Muffler Heat Shield - Middle

Courtesy of CHRYSLER GROUP, LLC

1 - MUFFLER HEAT SHIELD - MIDDLE

2 - NUTS

3 - SELF TAPPING SCREWS
