Module, Ignition Node: Installation: Installation
WARNING: This page is about a different car, the 2015 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
- Install the Ignition Node Module (IGNM) into the instrument panel from the backside.
- Pull the Ignition Node Module into place.

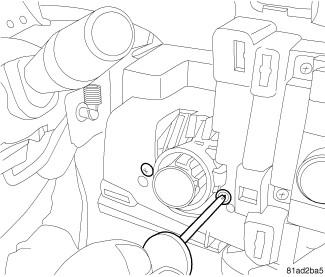

- Install 4 screws to the IGNM.
- Connect Electrical harness connector to the IGNM.
- Install the steering column opening cover and connect the related wire harness connectors.
- Install the dash end cap.
- Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
- If IGNM is being replaced, perform the RFHM verification test. Refer to STANDARD PROCEDURE .
