P0521-Engine Oil Pressure Sensor Performance: Notes

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .

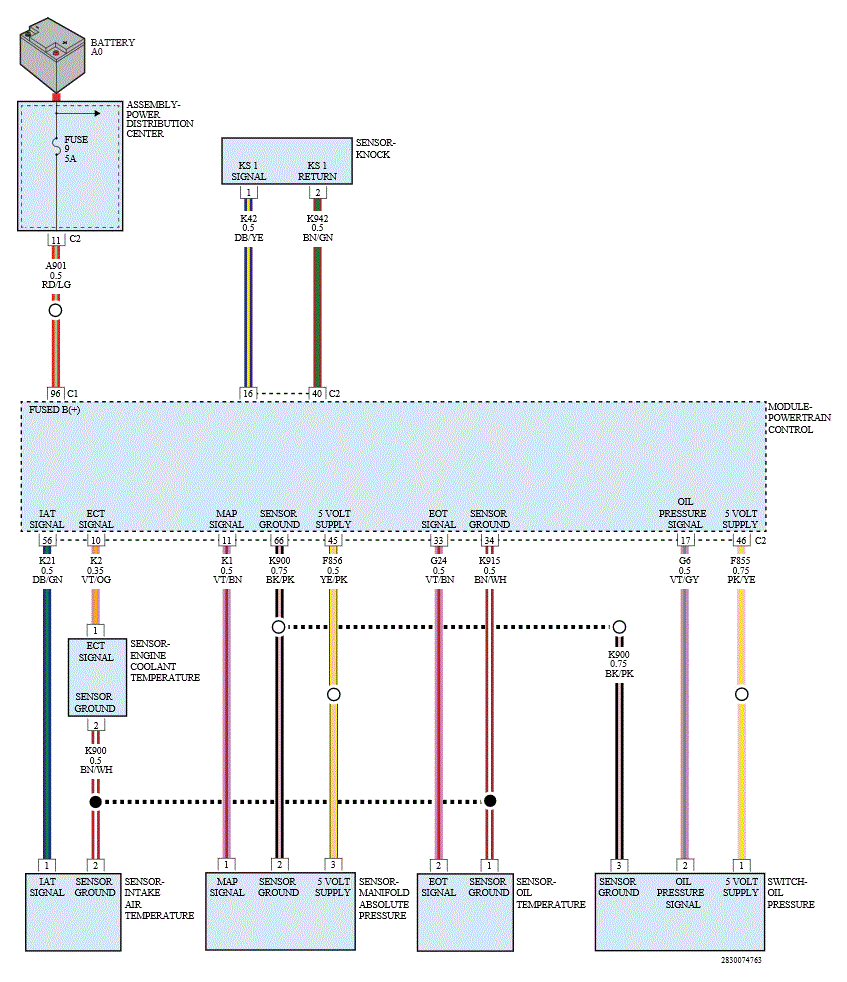

Fig 1: MAP, Oil Pressure, Coolant Temperature, Intake Air Temperature, Oil Temperature And Knock Sensor Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC
