Module, Power Inverter: Description: Description

WARNING: This page is about a different car, the 2014 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

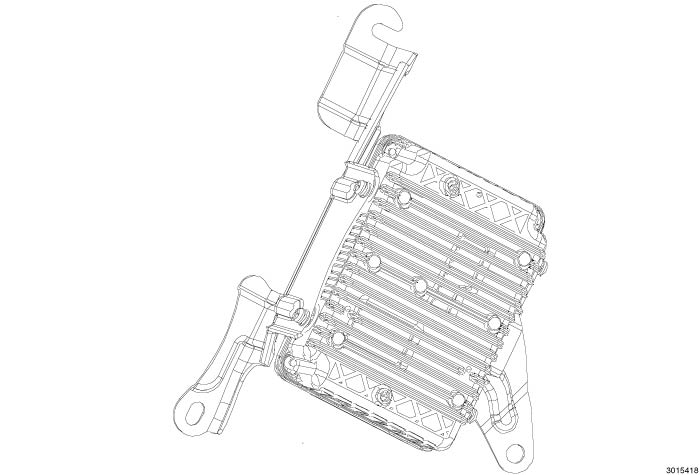

Fig 1: Power Inverter Module
GC0147674Courtesy of CHRYSLER GROUP, LLC

The power inverter module is located under the instrument panel above the emergency brake.

The power inverter module when activated will supply 200 watts of 110 volt power to the outlet.
