P113E-O2 Sensor 2/1 Slow Response (High Frequency): Notes

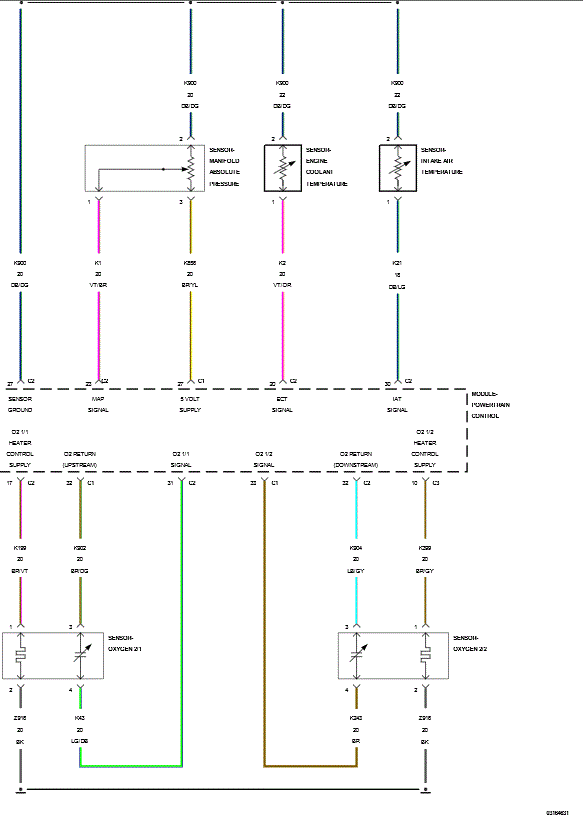

Fig 1: O2 Sensors 2/2 & 2/1 Circuit Schematic

Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .
