Junction Block: Installation: Installation
WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

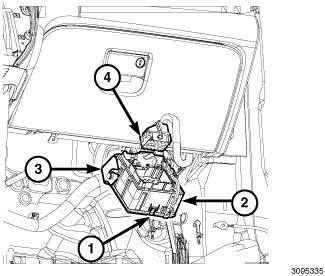

- Roll the junction block into the junction block bracket (3).
- Connect the electrical connectors (4).
- Roll the junction block (2) back into place and clip the connector (1)
- Install the passenger side instrument panel lower closeout. Refer to PANEL, SILENCER, LOWER, INSTALLATION .
- Connect the negative battery cable.
