Sensor, Boost Pressure: Installation

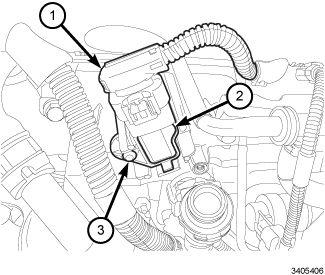

GC0147935Courtesy of CHRYSLER GROUP, LLC
  1. Install the boost pressure sensor (2) securely tighten the bolt (3).
  2. Connect the boost pressure sensor (2) wire harness connector (1).
  3. Install the engine cover. Refer to the appropriate service information article .
  4. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
