Module, Keyless Ignition Node: Installation: Installation

WARNING: This page is about a different car, the 2016 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

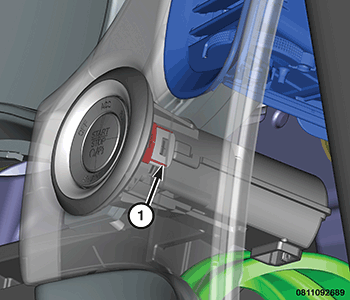

Fig 1: KIN Retaining Tab

Courtesy of CHRYSLER GROUP, LLC

Align the KIN to the instrument panel bezel allowing the retaining tabs (1) to secure the KIN in position.

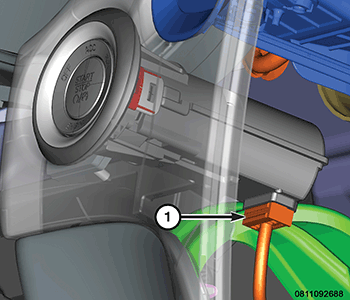

Fig 2: Keyless Ignition Node (KIN) Module Electrical Connector
Courtesy of CHRYSLER GROUP, LLC
Connect the electrical connector (1) to the KIN.

Fig 3: Positioning Telematic Steering Column Outward And Slide Gap Hider Forward
Courtesy of CHRYSLER GROUP, LLC
Place the steering column gap hider back to its installed position, engaging all the snap clips.
Install the radio. Refer to RADIO, INSTALLATION .
If the KIN is being replaced, perform the RFHM verification test. Refer to STANDARD PROCEDURE .
