Module Alignment - NAFTA

This procedure must be performed in the following cases:

• Removing / installing the radar sensor
• Warning light indicated the failure of the radar sensor proximity
• Rear axle adjustments
• Removing / installing the front end.

Preparation Measure  - The following steps must be performed before beginning the control and adjustment of the sensor / proximity radar:

• Check the inflation pressure of the tires and, if necessary, correct it.
• Make sure the steering wheel is centered.
• Check that there is at least 120 cm +/ - 5 cm in front of the vehicle for space to setup the sensor.
• The floor can have an angle of maximum inclination of 3 ° downhill or an uphill maximum inclination of 1 °.

Courtesy of CHRYSLER GROUP, LLC

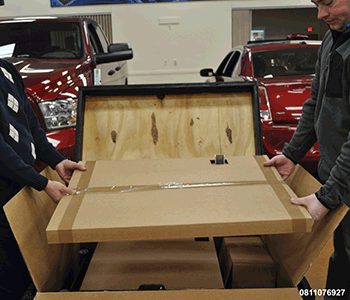

1. Follow the instructions included in the special tool 2014000080 container for proper unboxing.

   Courtesy of CHRYSLER GROUP, LLC

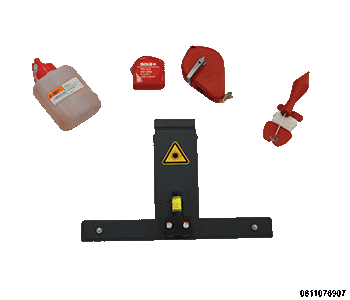

2. Verify the proper tools and components are in the shipping container. The following items are included: plumb bob, tape measure, snap line, chalk bottle, and the laser for the mirror.

   Courtesy of CHRYSLER GROUP, LLC

3. Assemble the alignment tool following the instructions included in the shipping container.
4. Once the tool is properly assembled, set it aside while performing the measurement procedure.

   Courtesy of CHRYSLER GROUP, LLC

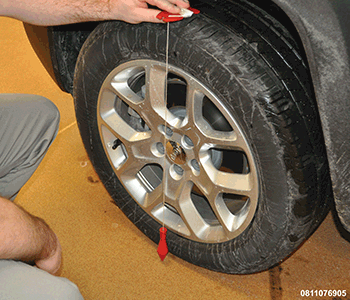

5. Find the center of each wheel and with the plumb bob mark the floor for each wheel. The plumb bob must be the same distance out from each wheel/tire.

   Courtesy of CHRYSLER GROUP, LLC

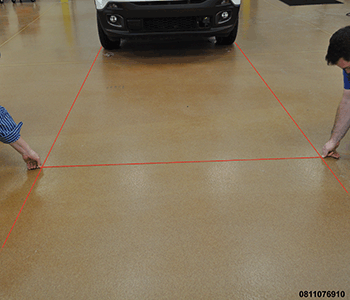

6. Use the chalk line to snap a line on both the left and right side of the vehicle along the marks made with the plumb bob in the previous step. Extend the line that is snapped at least 150 cm in front of the center of the front wheels. This will allow room to properly position the alignment tool.

   Courtesy of CHRYSLER GROUP, LLC

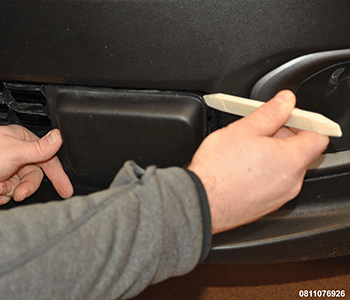

7. Remove the trim cover for the alignment sensor.

   Courtesy of CHRYSLER GROUP, LLC

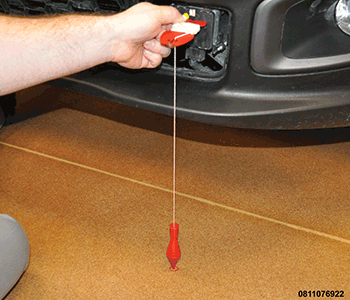

8. Find the horizontal center of the sensor and use the plumb bob to mark the location on the floor.

   Courtesy of CHRYSLER GROUP, LLC

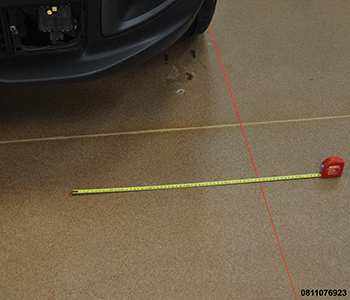

9. Measure a side chalk line to the sensor horizontal center mark. This will be the same length that the center of the sensor tool will be placed on the front chalk line.
10. Snap a line that is 90° perpendicular to the side chalk lines and that runs through the mark for the sensor horizontal center.

    Courtesy of CHRYSLER GROUP, LLC

11. Measure and mark a line that is 120cm from the horizontal center of the sensor to a line that is perpendicular to the side chalk lines. This front line will be where the mirror tool will be located, and needs to 120 cm from the sensor.

    Courtesy of CHRYSLER GROUP, LLC

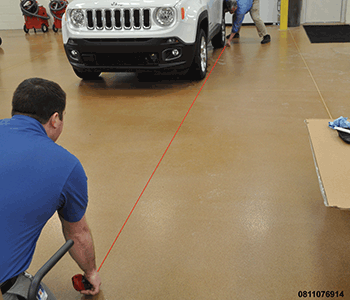

12. Position the sensor tool with the center lined up with the mark on the front line. Install the laser and align the beam with the chalk line.

    Courtesy of CHRYSLER GROUP, LLC

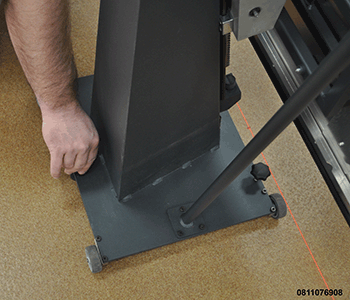

13. There are adjusters at the front and rear of the base of the sensor to level the tool.

    Courtesy of CHRYSLER GROUP, LLC

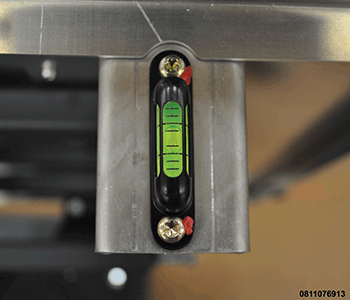

14. With the tilt cam in the 0 degree position, adjust the tool until the bubble is in the center of the level.

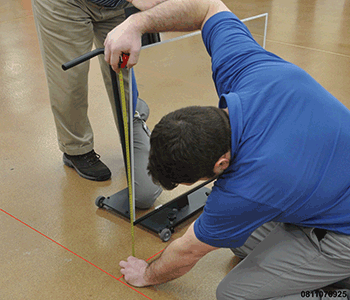

15. Measure from the horizontal mark on the floor to the vertical center of the sensor.

    Courtesy of CHRYSLER GROUP, LLC

16. Set the height of the center of the mirror at the same height as the vertical center of the sensor.

    Courtesy of CHRYSLER GROUP, LLC

17. Verify that the laser is still lined up with the front chalk line. Then make sure the bubble is still in the middle of the level with the tilt cam in the 0 degree position.
18. Turn off the laser and remove it from the mirror.
19. Use the scan tool to perform the alignment procedure.

THE SENSOR / RADAR PROXIMITY

- The calibration procedure involves performing three measurements, each time changing the angle of the reflecting mirror. To adjust the angle, tilt the mirror forward and then turn the tilt cam to the desired position.

• POSITION 1: mirror forward (2 degrees forward)
• POSITION 2: mirror in the middle (0 degrees)
• POSITION 3: mirror back (2 degrees rearward)

Courtesy of CHRYSLER GROUP, LLC

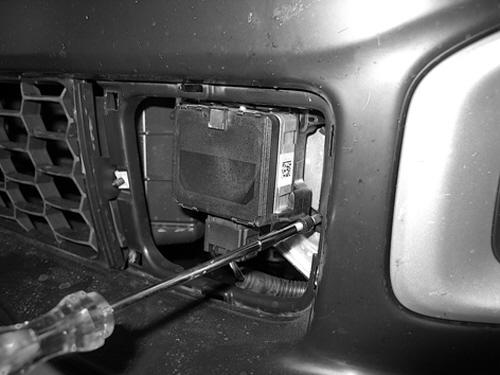

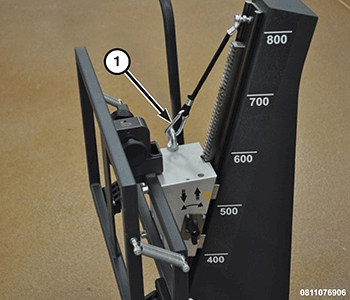

SCREW POSITION 1: with a tool acting on the screw shown in the figure for vertical adjustment.

Courtesy of CHRYSLER GROUP, LLC

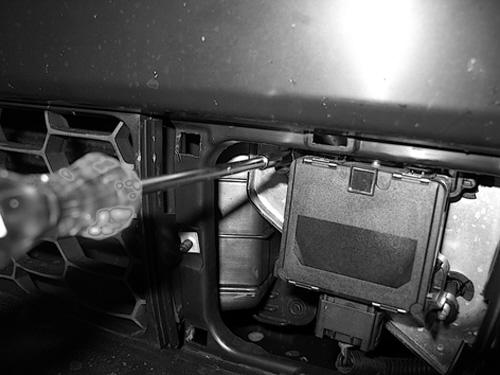

SCREW POSITION 2: with tool turn screw shown in the figure for horizontal adjustment.
