Module, Glow Plug: Removal

WARNING: This page is about a different car, the 2017 RAM ProMaster 3500, 2017 RAM ProMaster 2500, and 2017 RAM ProMaster 1500. However, it is still accessible from the selected car via links, so may be relevant.
GC0161798Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the negative battery cable.
  2. Remove nuts (1) the Power Distribution Center (PDC) cover (2).

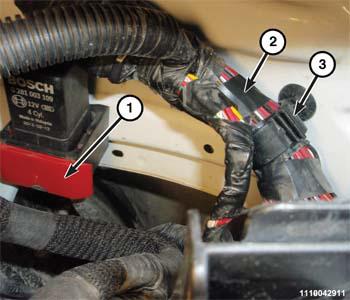

    GC0161896Courtesy of CHRYSLER GROUP, LLC
  3. Disengage wire harness retainer (3) and remove the wire harness (2).
  4. Disconnect the glow plug module wire harness connector (1).

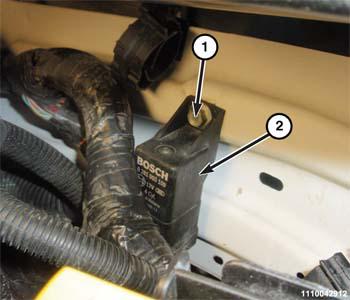

    GC0162004Courtesy of CHRYSLER GROUP, LLC
  5. Remove bolt (1) and the glow plug module (2).
