Module, Instrument Panel Cluster: Removal
WARNING: This page is about a different car, the 2017 RAM ProMaster 3500, 2017 RAM ProMaster 2500, and 2017 RAM ProMaster 1500. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
To avoid serious or fatal injury on vehicles equipped with airbags, disable the Supplemental Restraint System (SRS) before attempting any steering wheel, steering column, airbag, seat belt tensioner, impact sensor or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the SRS. Failure to take the proper precautions could result in accidental airbag deployment.
- Disconnect and isolate the negative battery cable.
- Remove the instrument cluster bezel from the instrument panel. Refer to BEZEL, INSTRUMENT CLUSTER, REMOVAL
.
- Lower the steering column to the most downward position setting.

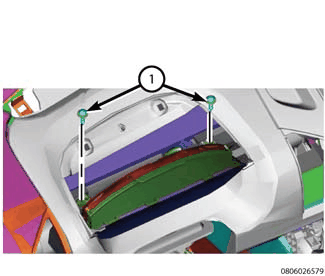

- Remove the fasteners (1) that secure the instrument cluster to the instrument panel.

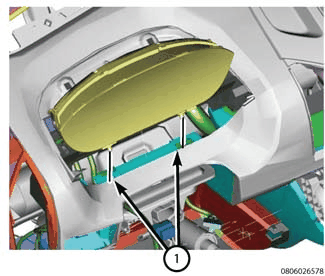

- Lift the instrument cluster upward far enough to disconnect the guide pins (1) from the instrument panel.
- Disconnect the instrument panel wiring harness connector (1) from the receptacle on the back of the instrument cluster.
- Remove the instrument cluster from the instrument panel.
