Radiator, Engine Cooling: Installation: Diesel

WARNING: This page is about a different car, the 2017 RAM ProMaster 3500, 2017 RAM ProMaster 2500, and 2017 RAM ProMaster 1500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the radiator (3) into mounts.
  2. Install the Charge Air Cooler (CAC). Refer to COOLER AND HOSES, CHARGE AIR, INSTALLATION .

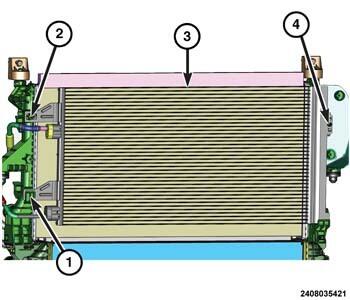

    GC0160541Courtesy of CHRYSLER GROUP, LLC
  3. Position the A/C condenser (3) into the front of the engine compartment and engage the lower condenser mounting bracket (1) to the radiator.
  4. Engage the left retaining tab (2) that secures the upper condenser mounting bracket to the radiator.
  5. Engage the right retaining tab (2) that secures the upper condenser mounting bracket to the radiator.
    GC0160574Courtesy of CHRYSLER GROUP, LLC
  6. Install the radiator shield (1) and tighten the fasteners (2) to 5 N.m (44 in. lbs.).
    GC0162103Courtesy of CHRYSLER GROUP, LLC

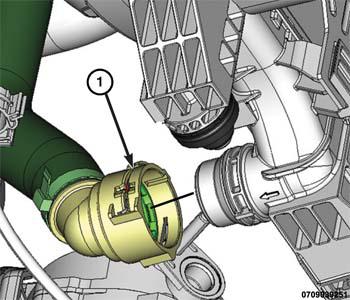

  7. Install the lower radiator hose to radiator and secure the locking clip.

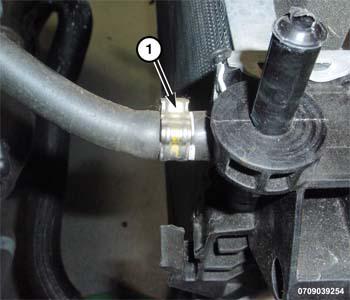

    GC0162069Courtesy of CHRYSLER GROUP, LLC
  8. Install the radiator overflow hose (1) onto the radiator. Using the (special tool #10288, Pliers, Hose Clamp) to lock the clamp.
  9. Install the cooling fans. Refer to FAN, COOLING, INSTALLATION .
  10. Fill the cooling system. Refer to STANDARD PROCEDURE .
  11. Connect the negative battery cable.
