Removal And Installation: Installation

WARNING: This page is about a different car, the 2015 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Radio Receiver Module Connectors

Courtesy of CHRYSLER GROUP, LLC

Position the radio near the instrument panel.
Connect the antenna cables (3) and radio wire harness connector (2).
If equipped, connect the USB connectors (1).

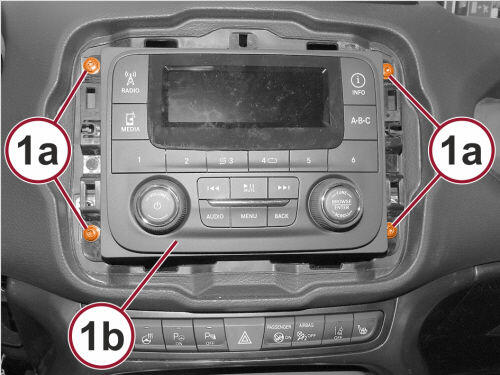

Fig 2: Radio & Screws
Courtesy of CHRYSLER GROUP, LLC
Position the radio into the instrument panel.
Install and securely tighten the four screws (1a) securing the radio (1b) to the instrument panel.

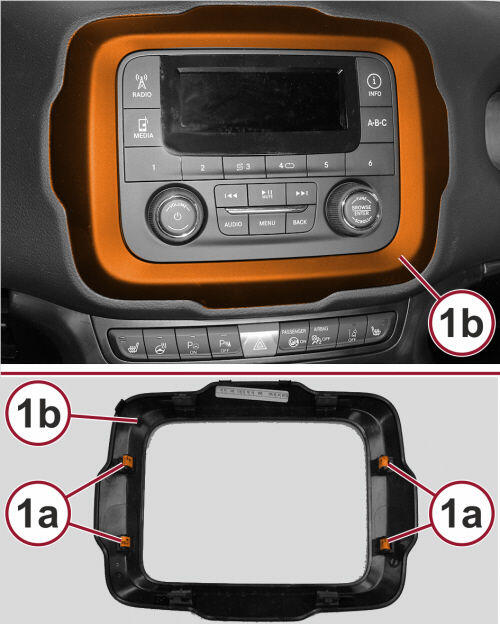

Fig 3: Center Trim Bezel & Tabs
Courtesy of CHRYSLER GROUP, LLC
Install the instrument panel center bezel (1b). Be certain the four retaining tabs (1a) are fully engaged to the instrument panel.
Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
NOTE:
If this Electronic Control Unit (ECU) is being replaced with a new unit, a diagnostic scan tool MUST be used to align the PROXI configuration data into the new ECU. Follow the routine outlined in the diagnostic scan tool for PROXI Configuration Alignment under Body Control Module (BCM) Miscellaneous Functions menu.

NOTE:
Uconnect® Access Applications and WiFi hotspot will be automatically updated in the replacement radio through the radio's embedded cellular phone based on the customers present subscription status. This update process may take up to an hour, depending upon the number of apps and adequate cellular services accessibility. The dealer is not expected to perform this process or to oversee it, but may need to explain to the vehicle owner or operator that some features and applications may not be fully restored and overall system response may be slowed until the process has completed.

NOTE:
For RA4 radio only: Any factory replacement radio for the same vehicle will be provided with the Navigation system already activated. For more information, refer to the NAVIGATION/TELECOMMUNICATION - SERVICE INFORMATION article.
