Left Hand Drive

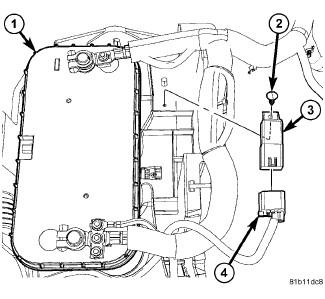

GC0124645Courtesy of CHRYSLER GROUP, LLC
NOTE:

The glow plug module (3) is located near the front of the battery (1).

  1. Connect the wire harness connector (4) to the glow plug module.
  2. Position the glow plug module (3) and install the mounting pin (2).
  3. Connect the negative battery cable.
