Module, Transmission Control (TCM): Installation
- Position the Transmission Control Module (TCM) to the vehicle for installation.

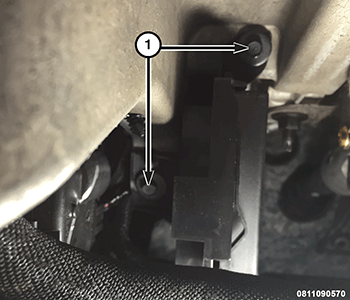

- Secure the TCM to the vehicle using two bolt fasteners (1).

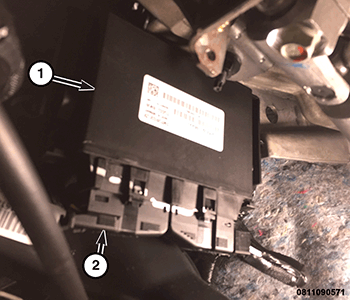

- Connect the wiring harness connections (2) to the TCM (1).
- Install the knee bolster/steering column lower panel. Refer to COVER, STEERING COLUMN OPENING, INSTALLATION .
- Connect the negative battery cable.
- Perform the TCM adaptation relearn. Refer to TCM ADAPTATION .
