Module, Power Inverter: Removal

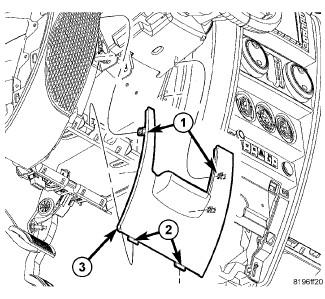

GC0131423Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect the negative battery cable.
  2. Remove the steering column opening cover. Refer to COVER, STEERING COLUMN OPENING, REMOVAL .

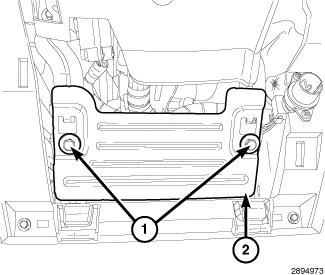

    GC0148191Courtesy of CHRYSLER GROUP, LLC
  3. Remove the retainers (1) and remove the reinforcement plate (2).

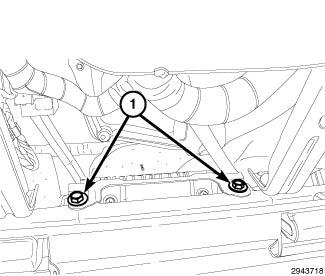

    GC0148200Courtesy of CHRYSLER GROUP, LLC
  4. Remove the upper power inverter retainers (1).

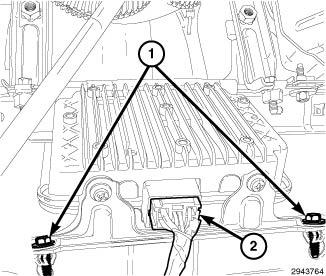

    GC0148201Courtesy of CHRYSLER GROUP, LLC
  5. Remove the lower power inverter retainers (1) and disconnect the wiring connector (2) from the power inverter module and remove from the vehicle.
