Telematics Mirror

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
GC0146085Courtesy of CHRYSLER GROUP, LLC
NOTE:

View shown from exterior of the vehicle.

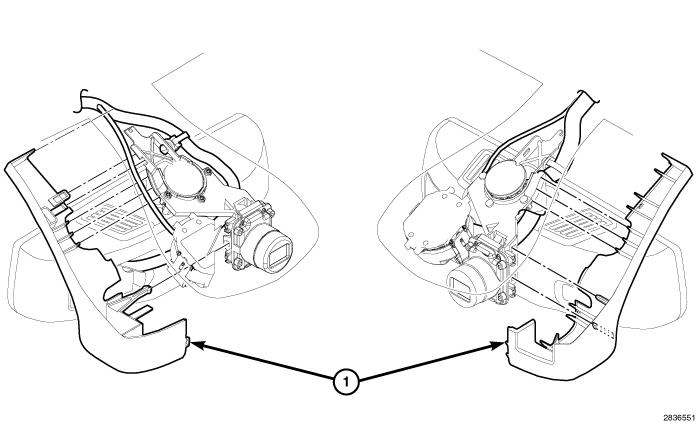

  1. Using a (special tool #C-4755, Trim Stick) or equivalent, separate the mirror trim covers (1) and remove.
    GC0146095Courtesy of CHRYSLER GROUP, LLC

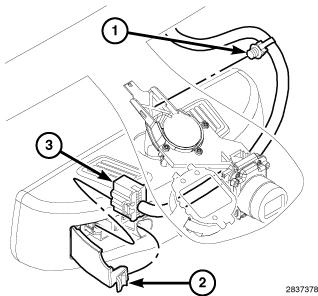

  2. Open the access panel (2) and disconnect the mirror harness connector (3).
  3. Release the harness push pin fastener (1) and position the wire harness aside.
    GC0146096Courtesy of CHRYSLER GROUP, LLC

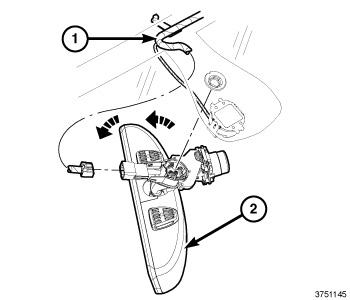

  4. Twist the mirror assembly (1) clockwise and release the mirror from the aluminum button (2) attached to the windshield.
GC0144974Courtesy of CHRYSLER GROUP, LLC
