Cylinder, Ignition Lock: Installation

Courtesy of CHRYSLER GROUP, LLC

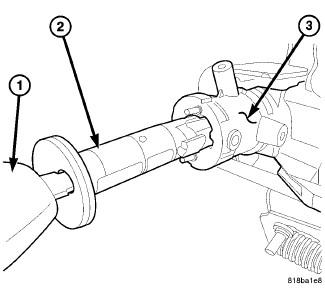

The ignition key (1) must be in the key cylinder (2) for cylinder installation.

1. Install the key cylinder (2) into the housing (3) using care to align the end of the key cylinder with the ignition switch.
2. Push the key cylinder (2) in until it clicks.
3. Rotate the key to the insert position.
4. Install the halo ring around the key cylinder housing.
5. Install the (S.K.R.E.E.M) module.
6. Install the shroud covers.
