Arm, Upper Control: Installation

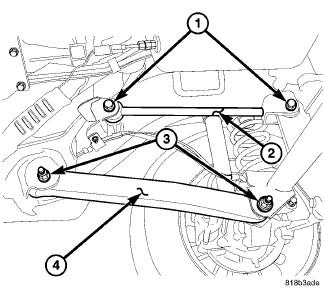

GC0130302Courtesy of CHRYSLER GROUP, LLC
  1. Position the upper suspension arm (2) at the axle and frame rail.
    NOTE:

    Axle bolt must be installed from the inboard to outboard.

  2. Install the bolts and finger tighten the nuts (1).
  3. Remove the supports and lower the vehicle.
  4. Tighten the bolt at the axle and frame brackets to 102 N.m (75 ft. lbs.).
