Cable, Shift: Installation
- Route the shift cable through the floor pan.
- Raise the vehicle.
- Verify that the transmission is in the PARK position by trying to rotate the propeller shaft. If the propeller shaft rotates, move the transmission manual shift lever to the full rearward position and turn the propeller shaft until the PARK system is engaged.
- Route the gearshift cable (3) through the mounting bracket (4).
- Engage the gearshift cable eyelet (3) onto the transmission manual shift lever.

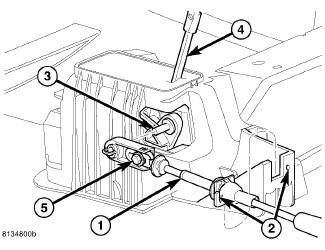

1 - GEARSHIFT CABLE 2 - CABLE RETAINER AND NOTCH 3 - SHIFTER ASSEMBLY PIN 4 - SHIFT LEVER 5 - ADJUSTMENT BOLT - Lower vehicle.
- Verify that the shifter is in the PARK position.
- Install the shift cable grommet nuts under the dash panel. Tighten bolts to 10 N.m (88 in. lbs.)
- Install the gearshift cable retainer into the notch in the shifter assembly and onto the shifter.
- Verify correct shifter operation and adjust if necessary. Refer to STANDARD PROCEDURE .
- If necessary, install the shield, covering the gearshift and park lock cables, to the shifter assembly and install the bolts to hold the shield to the shifter assembly.
- Install the floor console. Refer to CONSOLE, CENTER, INSTALLATION .
