Shroud, Steering Column, Lower: Installation

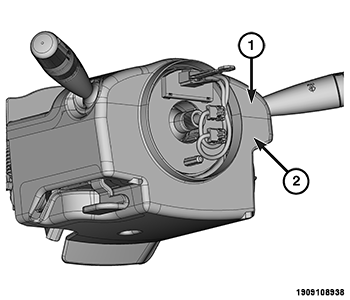

GC0175149Courtesy of CHRYSLER GROUP, LLC
  1. Install the lower shroud (2) into the upper shroud (1), clipping the shrouds to one another.
  2. Install the three screws attaching the lower shroud (2) to the column.
  3. Install the steering wheel. Refer to WHEEL, STEERING, INSTALLATION .
