Module, Blind Spot (BSM): Installation
WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

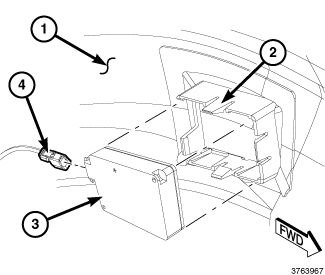

- Reach up behind the outboard end of the rear bumper fascia to position the blind spot sensor (3) to the mounting bracket on the inside surface of the fascia (1).
- Press the sensor into the mounting bracket until the latch tabs (2) are fully engaged.
- Connect the wire harness connector (4) to the sensor connector receptacle.
- Connect the negative cable to the battery. If equipped with an Intelligent Battery Sensor (IBS), reconnect the IBS connector.
NOTE:
If this Electronic Control Unit (ECU) is being replaced with a new unit, a diagnostic scan tool MUST be used to align the PROXI configuration data into the new ECU. Follow the routine outlined in the diagnostic scan tool for PROXI Configuration Alignment under Body Control Module (BCM) Miscellaneous Functions menu.
