Module, Drivetrain Control (DTCM): Installation
WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

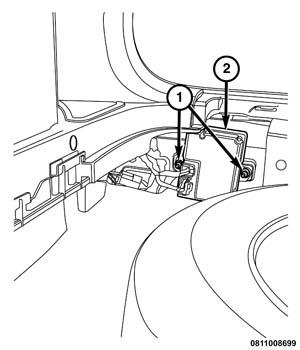

- Install the Drivetrain Control Module (DTCM) (2) to the mounting studs.
- Install the DTCM mounting nuts (1) and tighten to the proper torque. Refer to TECHNICAL SPECIFICATIONS .
- Connect the DTCM wire harness connectors.
- Install the cargo load floor. Refer to LOAD FLOOR, CARGO, INSTALLATION .
- Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
- Perform the DTCM verification test. Refer to DTCM VERIFICATION TEST .
