Module, Ignition Node: Installation
WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
- Assemble the IGnition Node Module (IGNM) (3) to the IGNM bracket (2) using four screws (1). Tighten the screws securely.

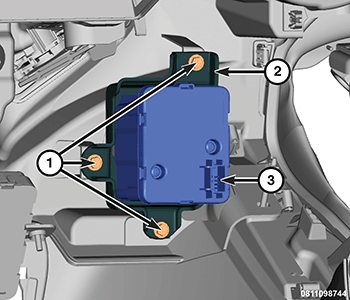

- Position the IGNM (3) and bracket (2) to the back of the lower instrument panel trim bezel.
- Install three screws (1) that secure the IGNM bracket (2) to the lower instrument panel trim bezel. Tighten the screws securely.
- Connect the instrument panel wire harness connector to the connector receptacle (3) on the back of the IGNM.
- Install the radio. Refer to RADIO, INSTALLATION .
- Install the steering column opening cover. Refer to COVER, STEERING COLUMN OPENING, INSTALLATION .
- Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
- If the IGNM is being replaced, all ignition keys will need to be programmed. Refer to MODULE, RADIO FREQUENCY (RF HUB), MODULE PROGRAMMING .NOTE:
This procedure will require you to log into DealerCONNECT and enter a PIN when requested. The PIN is temporary and will be active for 12 hours. After 12 hours, a new PIN will need to be obtained from DealerCONNECT.
