Module, Keyless Ignition Node (Kin): Installation
WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

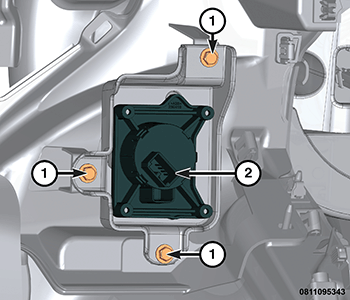

- Assemble the ignition node (3) to the ignition node bracket (2). Tighten using four screws (1).
- Position and tighten (1) the ignition node and bracket to the back of the lower instrument panel trim bezel.
- Connect the wiring harness connector to the connector receptacle (2) on the back of the ignition node.
- Install the radio. Refer to RADIO, INSTALLATION .
- Install the center dash trim bezel.
- Install the lower steering column opening trim panel. Refer to COVER, STEERING COLUMN OPENING, INSTALLATION .
- Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
- If the KIN is being replaced, perform the verification test. Refer to STANDARD PROCEDURE
.NOTE:
This procedure will require you to log into DealerCONNECT and enter a PIN when requested. The PIN is temporary and will be active for 12 hours. After 12 hours, a new PIN will need to be obtained from DealerCONNECT.
