Plug, Glow: Installation

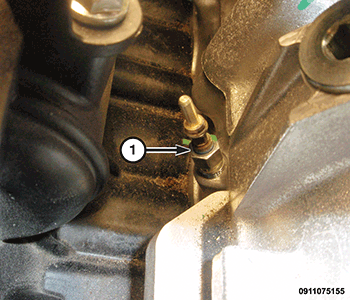

GC0170037Courtesy of CHRYSLER GROUP, LLC
  1. Install the glow plug(s) (1). Tighten the glow plug(s) to the proper. Refer to TECHNICAL SPECIFICATIONS .

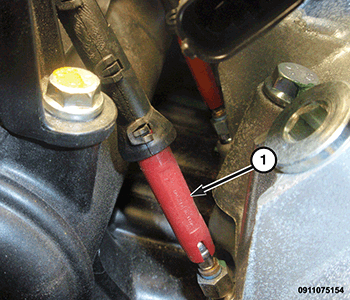

    GC0169960Courtesy of CHRYSLER GROUP, LLC
  2. Connect the glow plug wire harness connector (1).
  3. Install engine cover.
  4. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
