Removal And Installation: Installation
WARNING: This page is about a different car, the 2019 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.

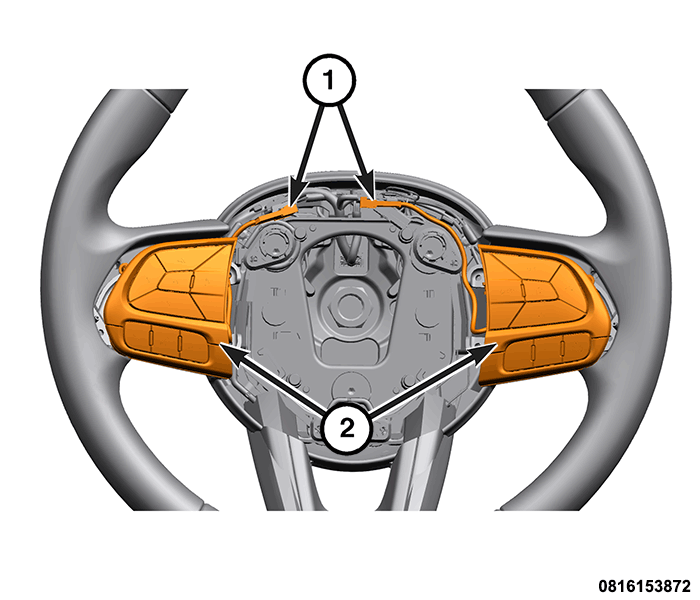

- Connect the wire harness connectors (1) for the speed control switch and/or the Electronic Vehicle Information Center (EVIC) switches (2).
- Position the wire harness in the steering wheel following the correct routing and secure the wire harness in the retainers.

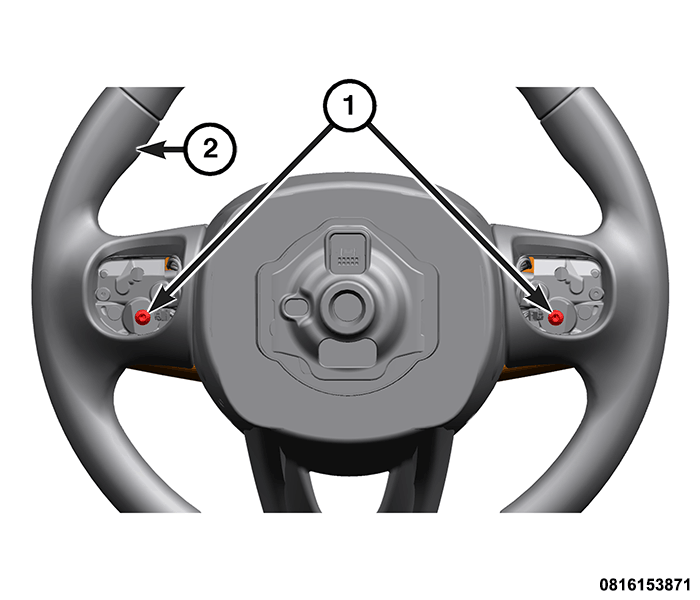

- From the backside of steering wheel (2), install and securely tighten the screws (1).
- Install the remote radio switch. Refer to SWITCH, REMOTE RADIO, REMOVAL AND INSTALLATION .
- Install the Driver side AirBag (DAB). Refer to AIR BAG, DRIVER, REMOVAL AND INSTALLATION .
