Removal And Installation: Removal

WARNING: This page is about a different car, the 2019 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:

Propeller shaft installation is a two-person operation. Never allow propeller shaft to hang from the center bearing, or while only connected to the transmission or rear axle flanges. A helper is required. If a propeller shaft section is hung unsupported, damage may occur to the shaft, coupler, and center bearing from over-angulation. This may result in driveline vibrations or component failure.

  1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  2. Remove the muffler. Refer to MUFFLER, EXHAUST, REMOVAL AND INSTALLATION .
  3. Remove both rear halfshafts. Refer to REMOVAL AND INSTALLATION - FRONT HALF SHAFT and REMOVAL AND INSTALLATION - REAR HALF SHAFT .
  4. Remove the rear stabilizer bar. Refer to STABILIZER BAR, REAR SUSPENSION, REMOVAL AND INSTALLATION .
    GC0165669Courtesy of CHRYSLER GROUP, LLC
  5. Disconnect the electrical connector (1) of the Rear Driveline Module (RDM) actuator.
    GC0164248Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    Protect the propeller shaft coating with a suitable duct tape to prevent any scratches.

    CAUTION:

    Do not allow the propeller shaft to hang from the vehicle unsupported. Damage may occur to the joint, boot, and center bearing from over-angulation.

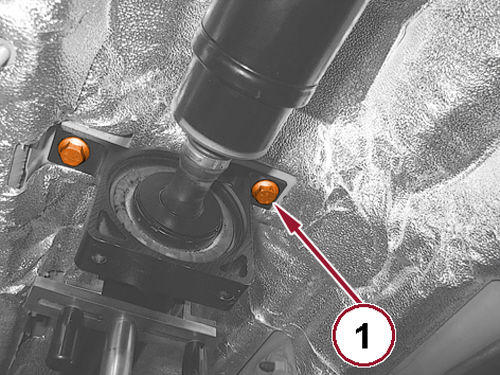

  6. Remove the propeller shaft center support bolts (1).
    GC0179040Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    The dust cover (2) must be replaced every time the propeller shaft is removed.

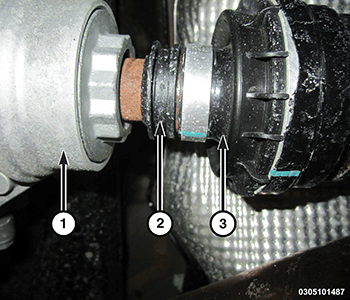

  7. Slide the dust cover (2) at the rear of the propeller shaft towards the RDM (1) to access the snap ring.
    GC0179400Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    The snap ring must be replaced every time the propeller shaft is removed.

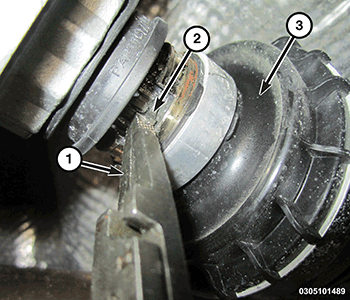

  8. Expand the snap ring (2) at the RDM using suitable snap ring pliers (2).
    GC0165111Courtesy of CHRYSLER GROUP, LLC

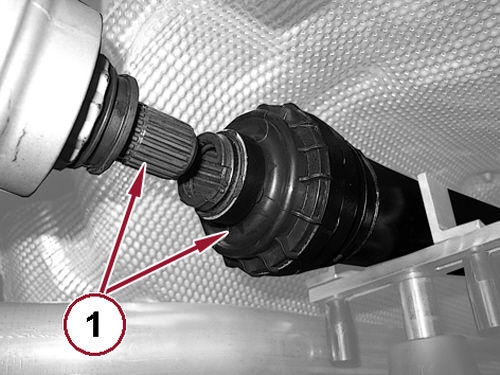

  9. Disconnect the propeller shaft from the pinion of the RDM (1).
    GC0164593Courtesy of CHRYSLER GROUP, LLC
  10. Position a suitable jack to support the RDM and remove the front RDM mounting bolt (1).
    GC0164019Courtesy of CHRYSLER GROUP, LLC
  11. Remove the rear RDM isolator through bolts (1a) and remove the RDM (1b).
    GC0166164Courtesy of CHRYSLER GROUP, LLC
  12. If necessary, remove the screws and the actuator (1) from the RDM.
