Removal And Installation: Installation

WARNING: This page is about a different car, the 2019 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.

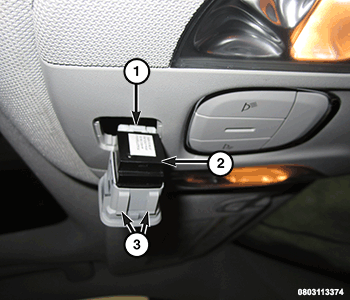

GC0179287Courtesy of CHRYSLER GROUP, LLC
  1. Connect the power liftgate switch wiring harness connector (1).
  2. Firmly press the power liftgate switch (2) into the overhead center console. Be sure that the retaining clips (3) are fully engaged.
  3. Connect the battery negative cable.
