Module, Radio Frequency (RF Hub): Installation: Installation

WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

Replace and Program the module(s) per the RF-Hub, BCM, PCM FOBik and ELV Replacement and Programming Order Guide. Refer to STANDARD PROCEDURE .

Fig 1: Electrical Connectors, Retainers & RF Hub
GC0147719Courtesy of CHRYSLER GROUP, LLC
  1. Position the RF Hub (3) to the vehicle and install the retainers (2).
  2. If equipped, connect the remote start antenna connector.
  3. Connect the electrical connectors (1).

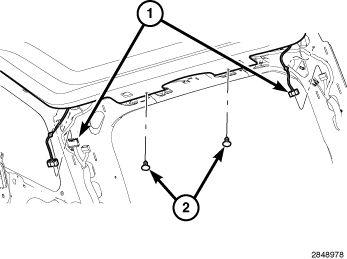

    Fig 2: Rear Electrical Connectors & Two Rear Push Pin Fasteners
    GC0146128Courtesy of CHRYSLER GROUP, LLC
  4. Install the headliner. Refer to HEADLINER, INSTALLATION .
  5. Connect the Intelligent Battery Sensor (IBS) to the negative battery post.
NOTE:

Program the RF-Hub. Refer to STANDARD PROCEDURE .
