Fan, Cooling: Installation: Installation
WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

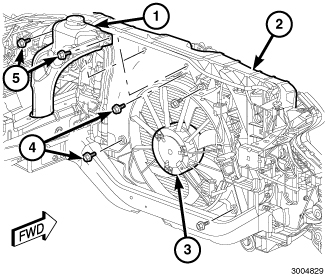

- Position the radiator fan into core support frame (2).
- Install the mounting bolts (4). Tighten bolts to 5 N.m (44 in. lbs.).
- Install the wiring harness to the lower area of the fan frame.
- Connect the radiator fan wire harness connector.
- Install the windshield washer reservoir (1).
- Install the air cleaner body. For 2.4L, refer to BODY, AIR CLEANER, INSTALLATION . For 3.6L, refer to BODY, AIR CLEANER, INSTALLATION .
- Connect the negative battery cable.
