Engine Block: FLEXPLATE: Removal
WARNING: This page is about a different variant/trim than selected.
- Remove the transmission. Refer to REMOVAL .

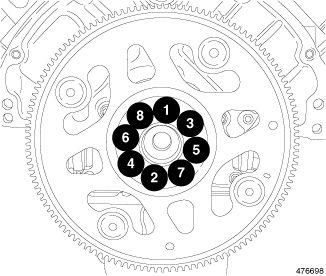

- Using the sequence shown, remove the flexplate retaining bolts.CAUTION:
Do not use an impact socket or a thick walled socket when removing or installing the flexplate retaining bolts, damage to the crankshaft, internal engine or the transmission may occur.
- Remove the flexplate.
