Insulator, Engine Mount, Front: Installation

WARNING: This page is about a different variant/trim than selected.

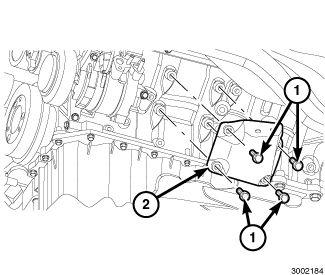

GC0144623Courtesy of CHRYSLER GROUP, LLC
NOTE:

Left side shown, right side similar.

  1. If removed, position the engine mount to engine block mounting brackets, install the retaining bolts and tighten to 61 N.m (45 ft. lbs.).

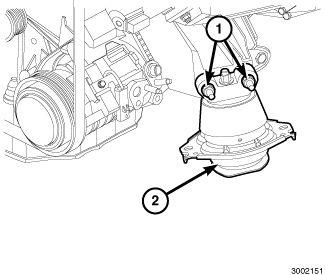

    GC0144622Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    Left side shown, right side similar.

  2. Position the engine mounts (2), Install the retainers (1) and tighten to 61 N.m (45 ft. lbs.).
  3. Lower the vehicle.

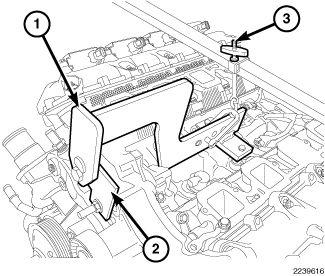

    GC0094863Courtesy of CHRYSLER GROUP, LLC
  4. Lower the Engine Support Fixture (special tool #8534C, Fixture, Driveline Support) (3) until the engine mounts are seated in the engine cradle.
  5. Remove the Engine Lift Fixture (special tool #8984B, Fixture, Engine Lifting) (1), Engine Lift Adapter (special tool #8984-UPD, Adapter, Engine Lift) (2) and the Engine Support Fixture (special tool #8534C, Fixture, Driveline Support)

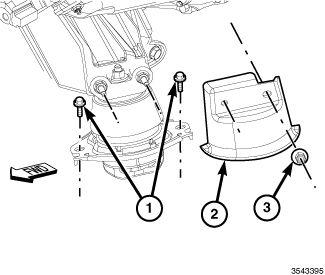

    GC0153851Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    Left side shown, right side similar.

  6. Position the engine mount to the frame.
  7. Install left/right engine mount lower retaining bolts (1) and tighten to 61 N.m (45 ft. lbs.).
  8. Position left/right engine mount heat shields (3), install the retaining nuts (2) and tighten to 27 N.m (20 ft. lbs.).

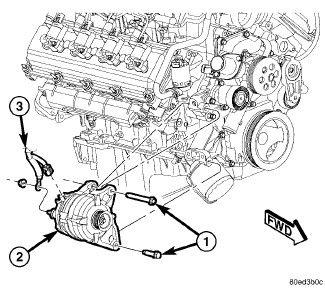

    GC0118401Courtesy of CHRYSLER GROUP, LLC
  9. If the right side  engine mount was removed. Install the generator. Refer to GENERATOR INSTALLATION 6.4L

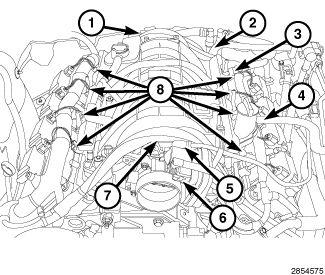

    GC0146137Courtesy of CHRYSLER GROUP, LLC
  10. Install the intake manifold. Refer to MANIFOLD, INTAKE, INSTALLATION .
  11. Raise and support the vehicle.

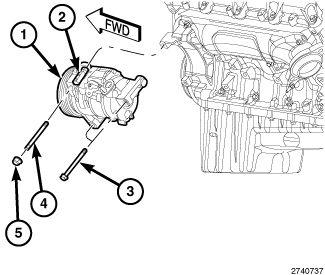

    GC0145607Courtesy of CHRYSLER GROUP, LLC
  12. Position the A/C compressor to the engine and install the stud (4). Tighten the stud to 10 N.m (89 in. lbs.).
  13. Loosely install the two bolts (3) and nut (5).
  14. Tighten the nut and bolts to 28 N.m (21 ft. lbs.).
  15. Connect the A/C compressor electrical connector.
    GC0095584Courtesy of CHRYSLER GROUP, LLC
  16. Position the belly pan and install the belly pan retainers (1).
  17. Lower the vehicle.
    GC0118256Courtesy of CHRYSLER GROUP, LLC
  18. Install the accessory drive belt. Refer to BELT, SERPENTINE, INSTALLATION 5.7L/6.4L .
    GC0139402Courtesy of CHRYSLER GROUP, LLC
  19. Position the engine oil dipstick tube, install the retaining nut at the right exhaust manifold.
  20. Install the intake manifold. Refer to MANIFOLD, INTAKE, INSTALLATION .
  21. Connect the negative battery cable (1).
