Arm, Lower Control: Installation

WARNING:

All pressurized air suspension components contain high pressure air (up to 220 psig). Use extreme caution when inspecting for leaks. Wear safety goggles and adequate protective clothing when inspecting or servicing the air suspension system. A sudden release of air under this amount of pressure can cause possible serious or fatal injury.

WARNING:

Before performing any service on the air suspension system, the system must be disabled to prevent the system from changing ride height. Before any given component is to be serviced it must be deflated. Servicing the air suspension system without the system disabled, or with pressure in any specific component, can cause possible serious or fatal injury.

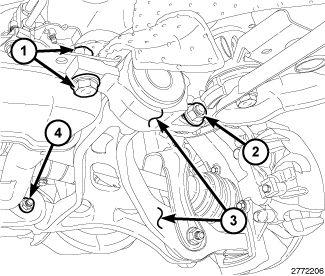

GC0145668Courtesy of CHRYSLER GROUP, LLC
NOTE:

If equipped with four wheel drive, position the half shaft if removed with the lower control arm.

  1. Position the lower control arm to the cradle.
  2. Install the lower control arm rear pivot vertical bolt and nut (1). Do not tighten.
  3. Install the lower control arm front pivot nut and bolt (4). Do not tighten.

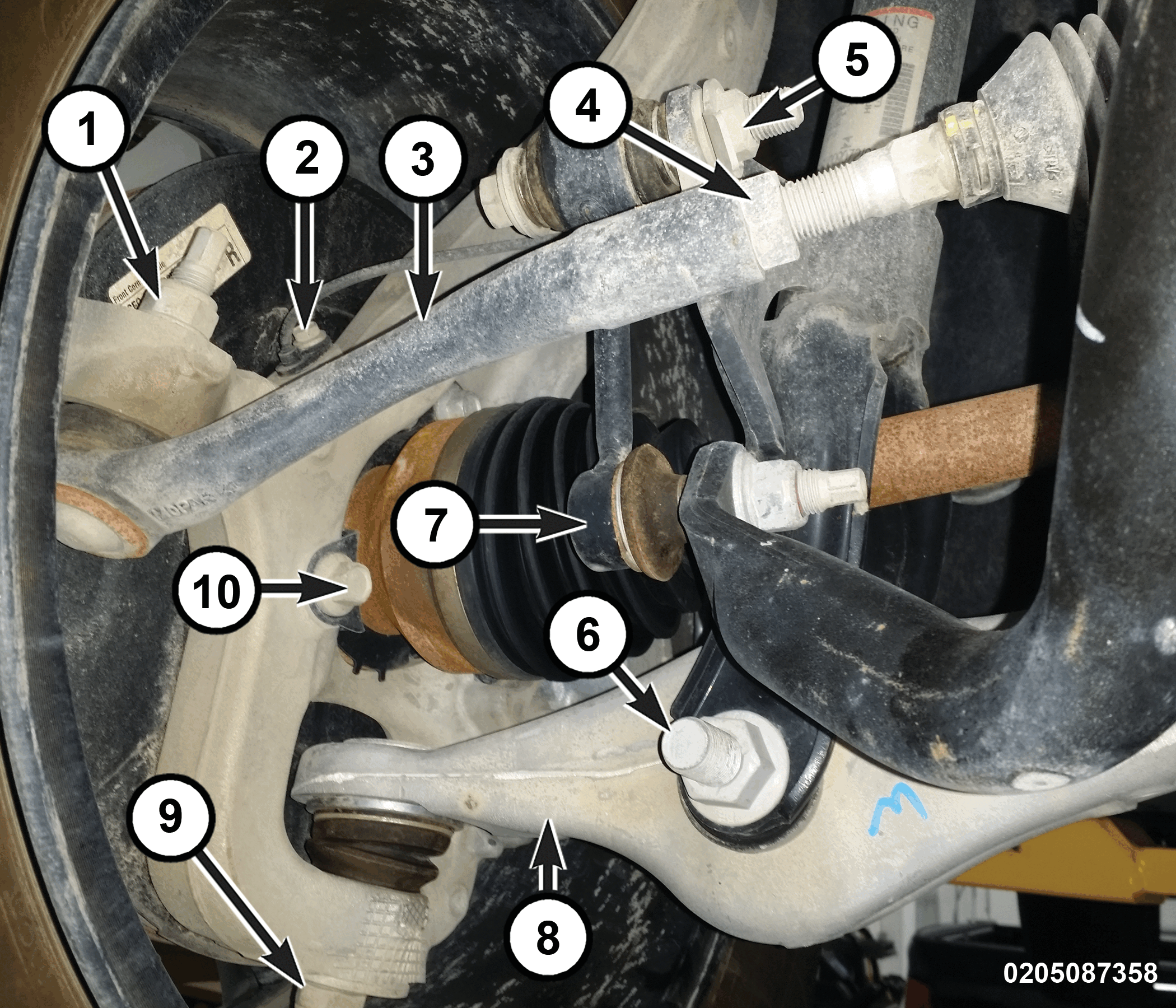

    GC0173647Courtesy of CHRYSLER GROUP, LLC
  4. Install the shock clevis bracket to lower control arm nut/bolt (6). Do not tighten.
  5. Install the knuckle. Refer to KNUCKLE, STEERING, INSTALLATION .
    GC0145668Courtesy of CHRYSLER GROUP, LLC
  6. Support the outside of the lower control arm with a suitable holding fixture, and raise to normal ride height.
  7. Tighten the lower control arm rear pivot vertical bolt  and nut (1) to 220 N.m (162 ft. lbs.), and tighten the lower control arm rear pivot horizontal bolt  and nut (2) to 90 N.m (66 ft. lbs.).
  8. Tighten the lower control arm front pivot nut and bolt (4) to 120 N.m (89 ft. lbs.)
    GC0173647Courtesy of CHRYSLER GROUP, LLC
  9. Tighten the shock clevis bracket to lower control arm nut/bolt (6) to 235 N.m (173 ft. lbs.).
  10. Install the tire and wheel assembly. Refer to WHEELS, STANDARD PROCEDURE .
  11. Remove the supports and lower the vehicle.
  12. If equipped with air suspension, with a scan tool, using the routines under the Air Suspension Control Module (ASCM), perform the following:
    • Fill Spring From Reservoir/Complete Fill on the air suspension spring on the side where the lower control arm was installed.
    • Run the Air Mass Calculation routine on the air suspension system.
    • If necessary, add to the system or deflate to atmosphere using the ASCM routines, then repeat the Air Mass Calculation routine again until system responds with Air Mass OK (188 - 216 bar-liters).
    • Enable the air suspension system.
  13. If equipped with air suspension, perform the ASCM Verification Test. Refer to STANDARD PROCEDURE .
  14. Perform wheel alignment. Refer to WHEEL ALIGNMENT, STANDARD PROCEDURE .
