Disassembly And Assembly: Disassembly

8HP50/850RE

Courtesy of CHRYSLER GROUP, LLC

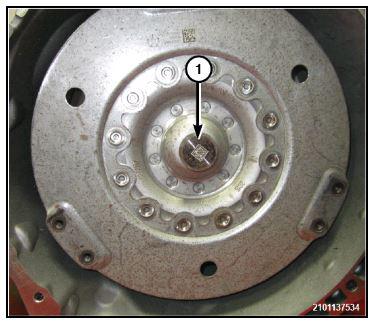

1. Remove the torque converter (1).

   Courtesy of CHRYSLER GROUP, LLC

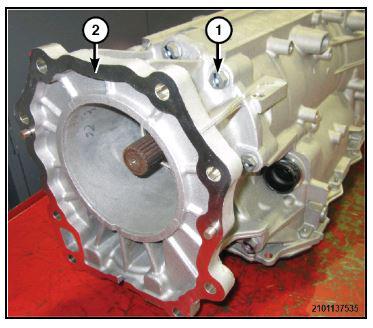

2. Remove the transmission housing extension bolts (1) and remove the extension housing (2).

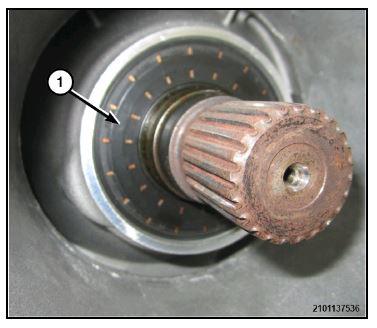

3. Remove the transmission rear oil seal (1) with a suitable slide hammer and screw.

   Courtesy of CHRYSLER GROUP, LLC

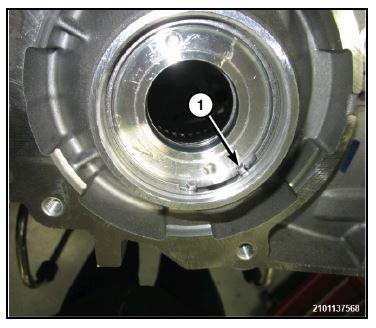

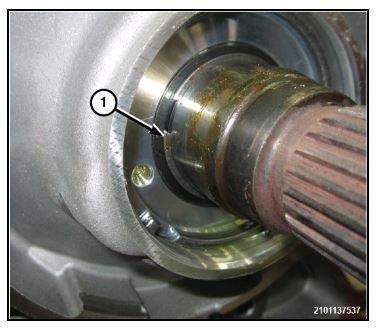

4. Remove the output shaft snap ring (1).

   Courtesy of CHRYSLER GROUP, LLC

   NOTE: End play specification is between 0.11 - 0.42 mm (0.0043 - 0.0165 in.). If end play is outside this range, a different selectable end play shim must be used during assembly.
5. Measure the output shaft end play as follows:

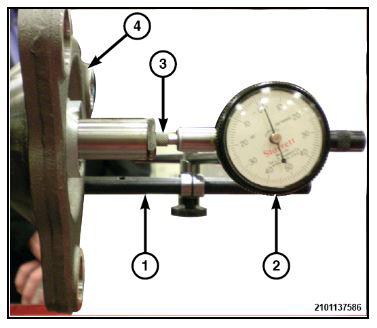

   1. Attach a dial indicator (2) and position the plunger (3) against the end of the output shaft.

      Courtesy of CHRYSLER GROUP, LLC

   2. Zero the dial indicator (2).
   3. Move the output shaft in and out, and record the maximum travel on the dial (2) for assembly reference.

   Courtesy of CHRYSLER GROUP, LLC

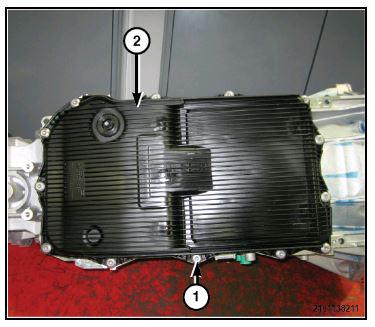

6. Remove the thirteen oil pan retaining bolts (1).
7. Carefully remove the oil pan and gasket (2).

   Courtesy of CHRYSLER GROUP, LLC

   NOTE:

   Inspect the gasket for reuse. If the seal is cut or torn, replace the gasket.

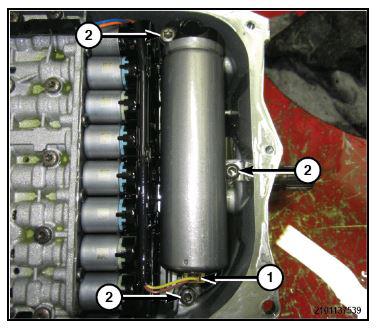

8. If equipped, disconnect the Hydraulic Impulse Oil Storage (HIS) connector (1).
9. If equipped, remove three bolts (2) and the HIS. accumulator.

   Courtesy of CHRYSLER GROUP, LLC

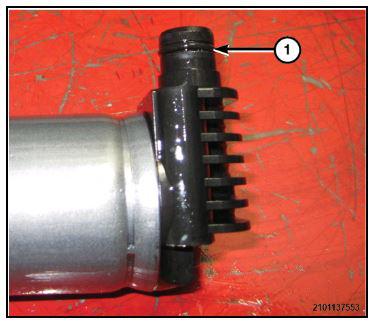

10. Verify the seal (1) on the input end of the HIS. accumulator is not torn or cut. Replace the seal if it looks worn or damaged,

    Courtesy of CHRYSLER GROUP, LLC

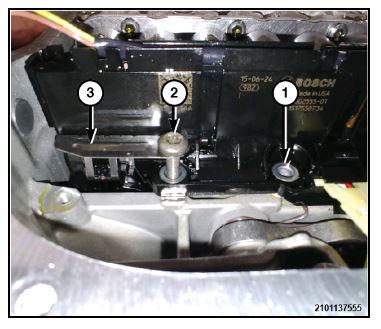

11. Remove the valve body assembly end retainer bolts (1, 2).
12. Lift the electrical connector lock (3) to release the internal harness end from inside the transmission for valve body assembly removal.

    Courtesy of CHRYSLER GROUP, LLC

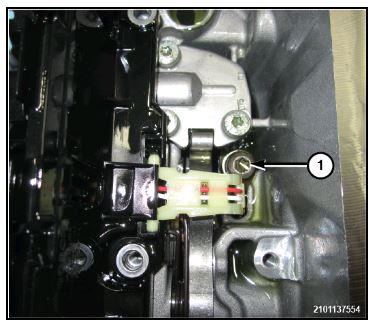

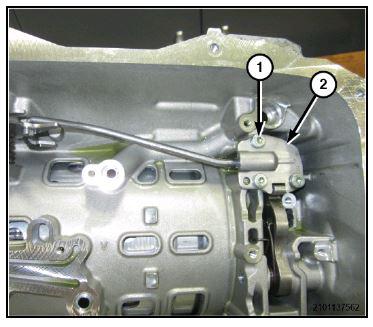

13. Remove the Output Speed Sensor (OSS) bolt (1) and gently lift the OSS out from the case.

    Courtesy of CHRYSLER GROUP, LLC

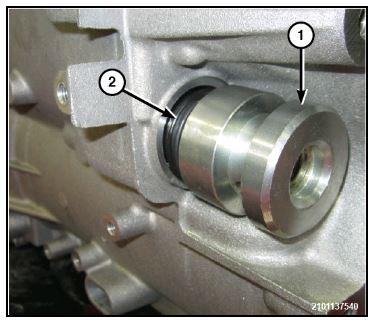

14. Using (special tool #10377, Remover/Installer, Guide Sleeve) (1), carefully pull the electrical harness insulator (2) straight out from the transmission case (3).

    Courtesy of CHRYSLER GROUP, LLC

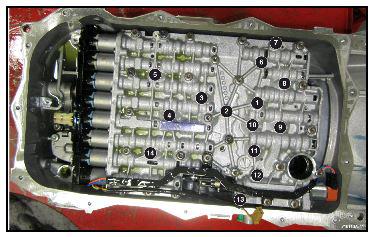

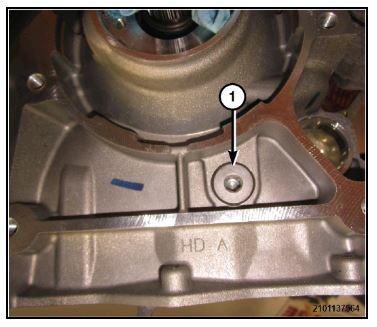

15. Remove the valve body assembly bolts (1-14) in the order shown and remove the valve body.

    Courtesy of CHRYSLER GROUP, LLC

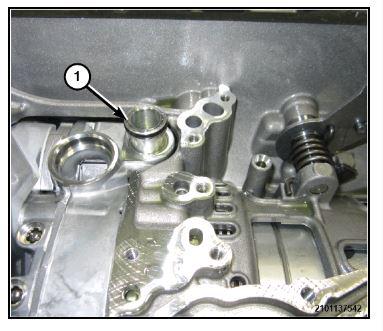

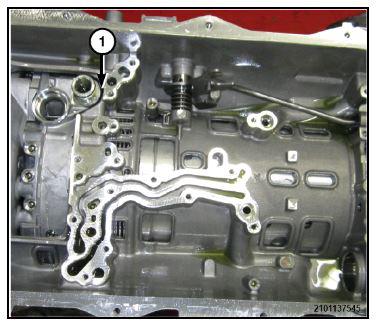

16. Remove the fluid port (1) from the transmission or valve body assembly (the fluid port may stick in the valve body upon removal).
17. Inspect the fluid port O-rings (1) for damage or wear and replace as necessary.

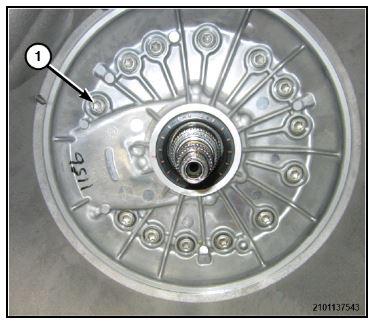

18. Remove and discard the 14 oil pump housing retaining bolts (1).

    Courtesy of CHRYSLER GROUP, LLC

    NOTE:

    Remove the input shaft O-ring before the oil pump is removed.

    Courtesy of CHRYSLER GROUP, LLC

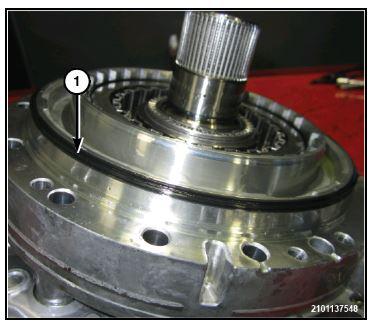

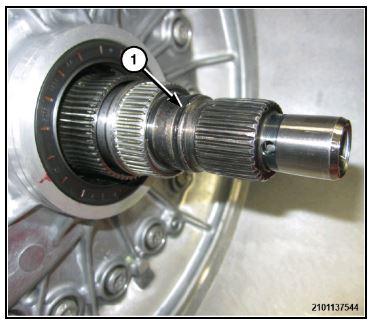

19. Remove the input shaft O-ring (1) using a small pick or equivalent.
20. Carefully pry the oil pump housing away from the case with a small flat blade screwdriver or equivalent through the case opening (1).

    Courtesy of CHRYSLER GROUP, LLC

21. From the front of the transmission, remove the oil pump housing.

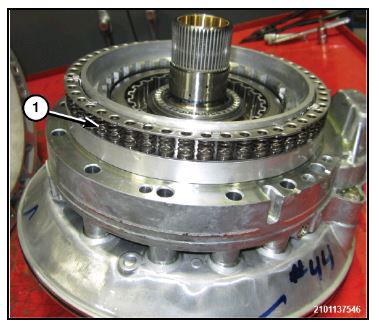

22. Remove the B clutch spring damper (1).

    Courtesy of CHRYSLER GROUP, LLC

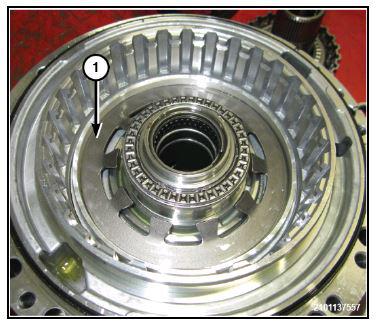

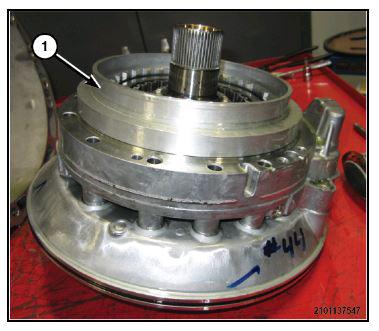

23. Remove the B-piston (1) from the assembly.

    Courtesy of CHRYSLER GROUP, LLC

24. Check the B-piston seal (1) for damage or wear and replace if necessary.

    Courtesy of CHRYSLER GROUP, LLC

25. Remove the snap ring (1).

    Courtesy of CHRYSLER GROUP, LLC

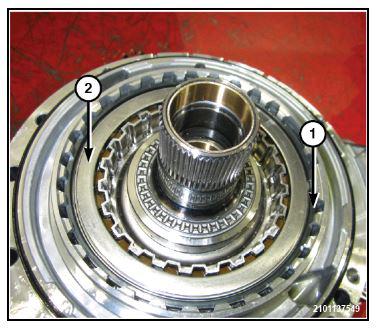

26. Remove the clutches and spacers (2).

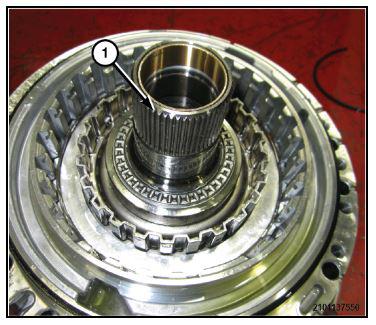

27. Remove the hub (1).

    Courtesy of CHRYSLER GROUP, LLC

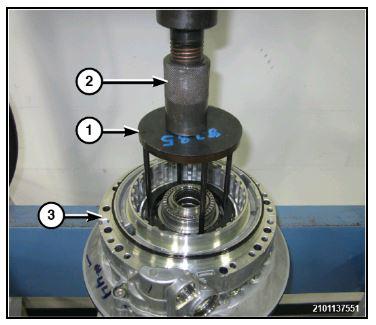

28. Position the oil pump housing assembly (3) in a suitable arbor press (2).

    Courtesy of CHRYSLER GROUP, LLC

29. Using (special tool #8285, Compressor, Spring) (1), press on the fingers of the piston retaining ring to remove tension.
30. Remove the two retainer halves (1) from the clutch housing.

    Courtesy of CHRYSLER GROUP, LLC

31. Remove the wave spring (1).

    Courtesy of CHRYSLER GROUP, LLC

32. Remove the clutch piston (1) by rotating and gently lifting.

    Courtesy of CHRYSLER GROUP, LLC

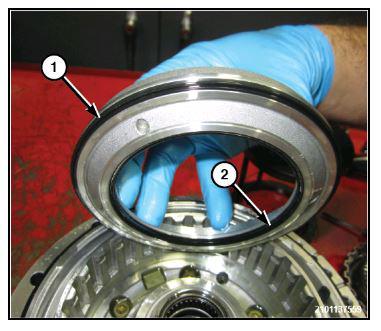

33. Inspect the inner and outer piston seals for wear or damage and replace as necessary (1).

    Courtesy of CHRYSLER GROUP, LLC

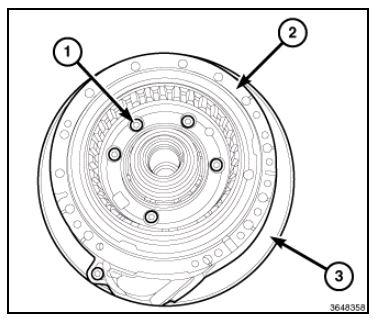

34. Remove the bolts (1) and separate the oil pump housing (2) from the oil pump cover (3).

    Courtesy of CHRYSLER GROUP, LLC

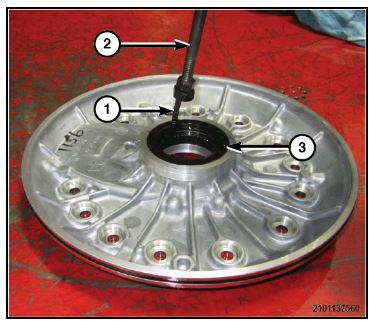

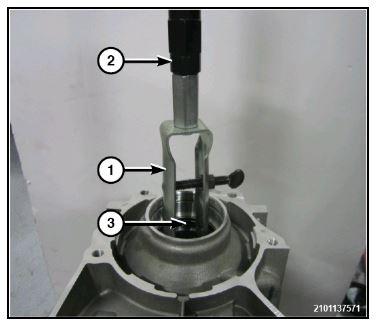

35. Using (special tool #9667, Remover, Seal) (1) and (special tool #C-3752, Slide Hammers) (2), remove the oil seal (3) from the front pump cover.

    Courtesy of CHRYSLER GROUP, LLC

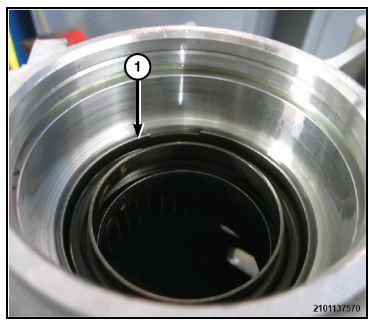

36. Remove the snap ring.

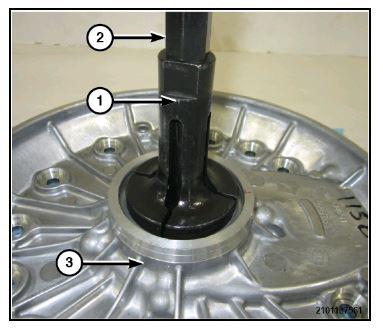

37. Using (special tool #6787A, Remover, Bearing Cup) (1) and (special tool #C-3752, Slide Hammers) (2), remove the needle bearing from the front cover (3).
38. Remove the front pump needle bearing snap ring.
39. Using (special tool #9585, Remover, Bearing Cup) (1) and (special tool #C-637, Slide Hammer, Universal) (2) remove the front pump needle bearing.

    Courtesy of CHRYSLER GROUP, LLC

40. Remove the manual park release lever retaining nut (2) and remove the lever (1).

    Courtesy of CHRYSLER GROUP, LLC

41. Remove the three park pawl lock rod guide plate retaining bolts (1) and remove the plate (2).

    Courtesy of CHRYSLER GROUP, LLC

42. Remove the park pawl lock rod (1) from the fork (2).

    Courtesy of CHRYSLER GROUP, LLC

    NOTE:

    Pay attention to the spring position for installation.

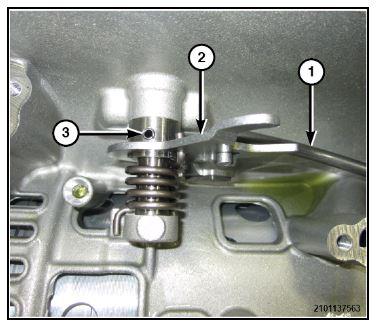

43. Remove the roll pin from (3) the selector shaft using a suitable pin punch.
44. Remove the shaft, spring and manual lever assembly (2) from the case.
45. Remove the selector shaft seal using a small screwdriver or equivalent.
46. Remove the park pawl shaft plug (1) from the rear of the case.

    Courtesy of CHRYSLER GROUP, LLC

    NOTE:

    Pay attention to the spring position for installation.

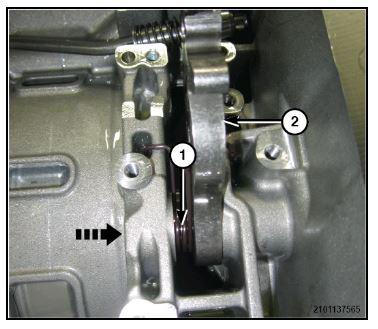

47. Remove the park pawl shaft using a suitable pin punch (Notation arrow for location and drive-out direction), remove the park pawl (2) and spring (1).

    Courtesy of CHRYSLER GROUP, LLC

    NOTE:

    The transmission must be in a vertical position before the main stack is removed, so damage to the drums do not occur.

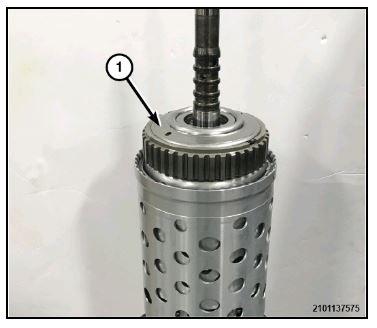

48. Remove the input/output shaft and P4 annulus drum assembly (1) from the case.

    Courtesy of CHRYSLER GROUP, LLC

49. Remove the outer bearing cup snap ring (1).

    Courtesy of CHRYSLER GROUP, LLC

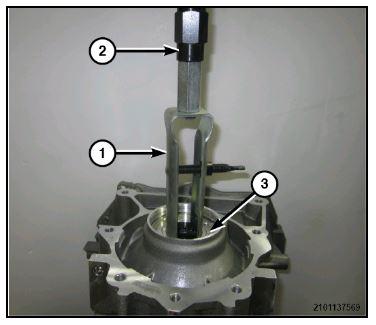

50. Using (special tool #9664, Remover, Bearing Cup) (1) and (special tool #C-637, Slide Hammer, Universal) (2), remove the bearing cup (3).

    Courtesy of CHRYSLER GROUP, LLC

    Courtesy of CHRYSLER GROUP, LLC

51. Remove the output shaft oil dam snap ring (1).

    Courtesy of CHRYSLER GROUP, LLC

52. Using (special tool #9664, Remover, Bearing Cup) (1) and (special tool #C-637, Slide Hammer, Universal) (2), remove the oil dam (3).

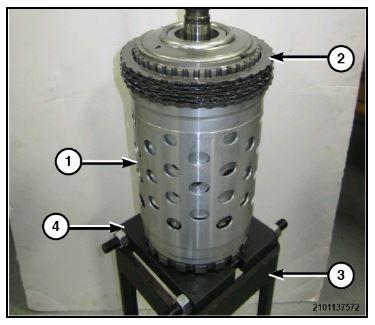

53. Position the input/output shaft and P4 annulus drum assembly (1) on (special tool #8925-3, Assembly, Press Fixture) (3) and (special tool #1130, Splitter, Bearing/Gear) (4).

    Courtesy of CHRYSLER GROUP, LLC

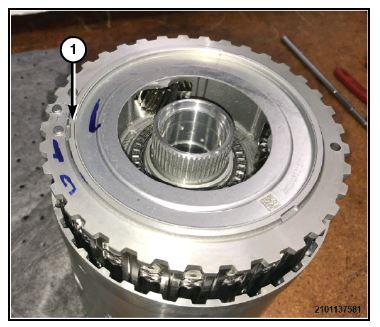

54. Remove the B clutch pack (2).

    Courtesy of CHRYSLER GROUP, LLC

55. Remove the O-ring and 5 squared O-rings from the input shaft.

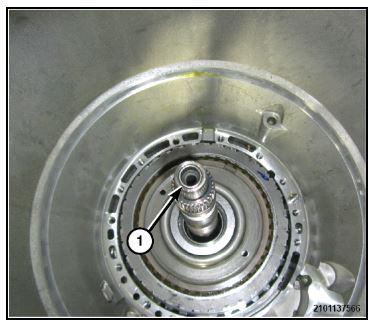

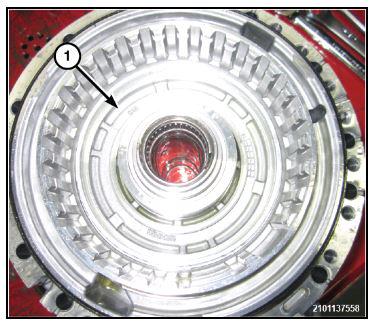

56. Remove the P1 annulus/B clutch hub assembly (1) from the P4 annulus drum.
57. Remove the selectable shim (3) from the P1 annulus/B clutch hub.

    Courtesy of CHRYSLER GROUP, LLC

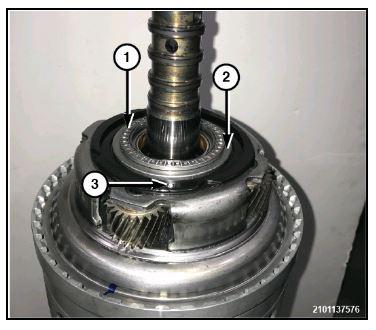

58. Remove the thrust bearing (1) and holding plate (2) from the P1 planetary carrier.
    NOTE:

    The (special tool #10378, Rings, Support) are three pieces intended to be used in multiple locations around the drum to prevent damage from prying.

59. Position the (special tool #10378, Rings, Support) on the P4 annulus drum assembly to protect the drum.

    Courtesy of CHRYSLER GROUP, LLC

    NOTE:

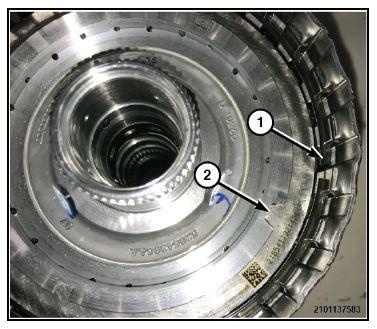

    Pry the snap ring (1) from the opposite side of the snap ring openings to release.

    NOTE:

    When the snap ring (1) is removed the internal clutch drum may drop slightly.

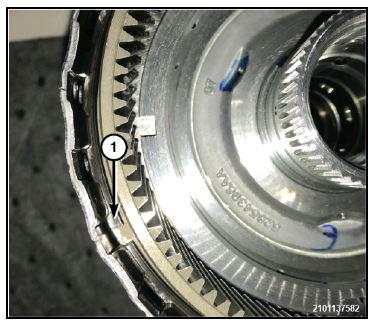

60. Using a suitable tool release the snap ring (1) by prying in and up from the opposite side of the snap ring openings.

    Courtesy of CHRYSLER GROUP, LLC

61. Remove the P1 planetary carrier.
62. Remove the input shaft with P2 planetary carrier (1) from the drum assembly.
63. Remove the thrust bearing and washer (2).
64. Remove the P2 annulus/P3 sun gear (1) from the drum assembly.

    Courtesy of CHRYSLER GROUP, LLC

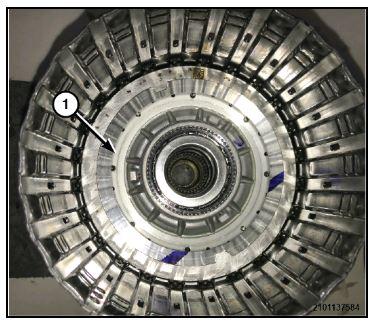

65. Remove the D clutch drum (2) from the P4 annulus drum (3).

    Courtesy of CHRYSLER GROUP, LLC

    NOTE:

    The (special tool #10378, Rings, Support) are three pieces intended to be used in multiple locations around the drum to prevent damage from prying.

66. Position the (special tool #10378, Rings, Support) (4) on the P4 annulus drum assembly to protect the drum.
67. Using a suitable tool, release and remove the snap ring (1).

    Courtesy of CHRYSLER GROUP, LLC

68. Remove the P3 planetary carrier (1).
69. Remove the thrust bearing from the planetary carrier.

    Courtesy of CHRYSLER GROUP, LLC

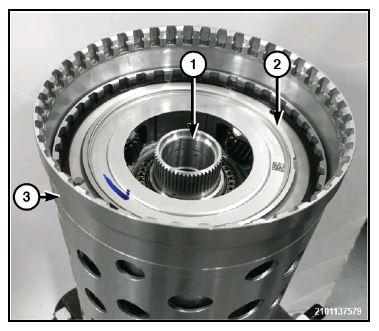

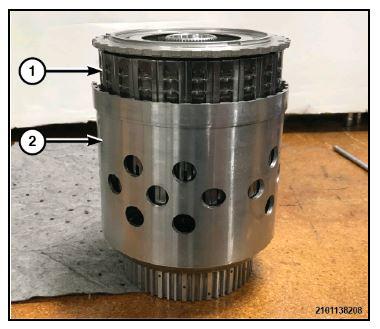

70. Remove the P4 sun gear/C/E clutch retainer (1) from the D clutch drum (2).

    Courtesy of CHRYSLER GROUP, LLC

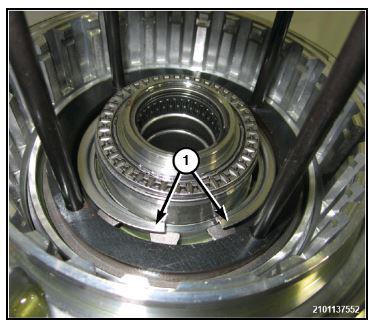

71. Remove the snap ring (1) from the P4 sun gear/C/E clutch retainer and remove the annulus ring.

    Courtesy of CHRYSLER GROUP, LLC

72. Remove the snap ring (1) from the P4 sun gear/C/E clutch retainer.
73. Remove the E clutch (2) from the P4 sun gear/C/E clutch retainer.
74. Remove the thrust bearing from the E clutch (2).

    Courtesy of CHRYSLER GROUP, LLC

    NOTE:

    Thrust bearing may stick to sun gear upon removal.

    NOTE:

    The E clutch and C clutch are similar. The C clutch hub is removable and has 6 fricton plates.

    Courtesy of CHRYSLER GROUP, LLC

75. Remove the C clutch (1) from the P4 sun gear/C/E clutch retainer (2).
76. Remove the bearings from the top and bottom of the C clutch.

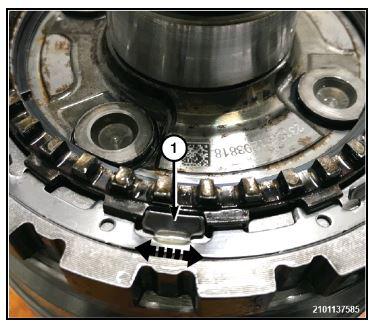

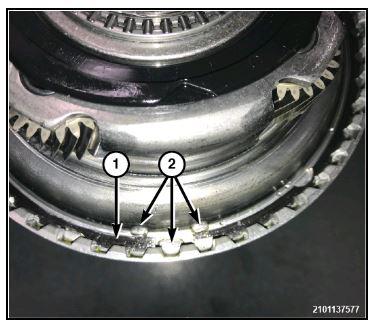

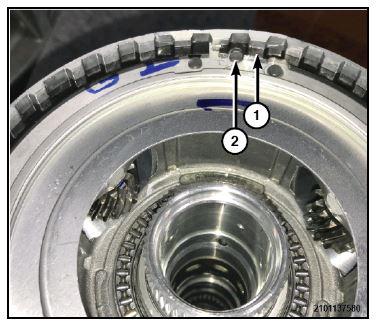

77. Remove the P4 planetary carrier/output shaft lock ring from the P4 annulus drum by gently prying the locking tabs open and turning the lock ring to center the locating tabs in the output shaft tab openings. Discard the lock ring and install a NEW  lock ring during assembly.

    Courtesy of CHRYSLER GROUP, LLC

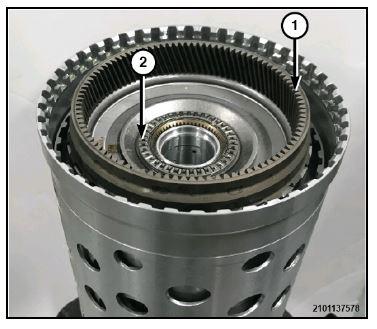

78. Remove the snap ring (1) from the P4 annulus drum.

    Courtesy of CHRYSLER GROUP, LLC

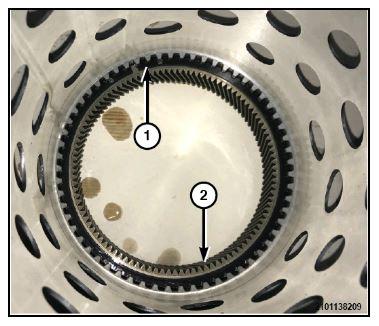

79. Remove the P4 annulus (2) from the P4 annulus drum.
