Disassembly And Assembly: Disassembly

Courtesy of CHRYSLER GROUP, LLC

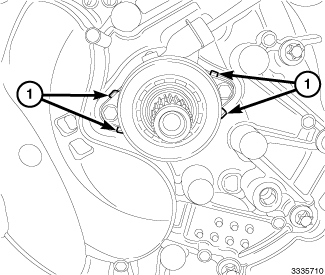

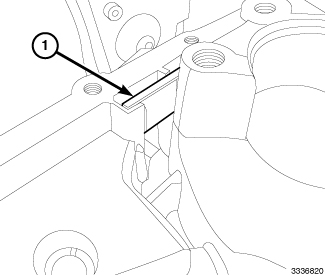

Release the retention tabs from the Concentric Slave Cylinder (CSC) (1).

Courtesy of CHRYSLER GROUP, LLC

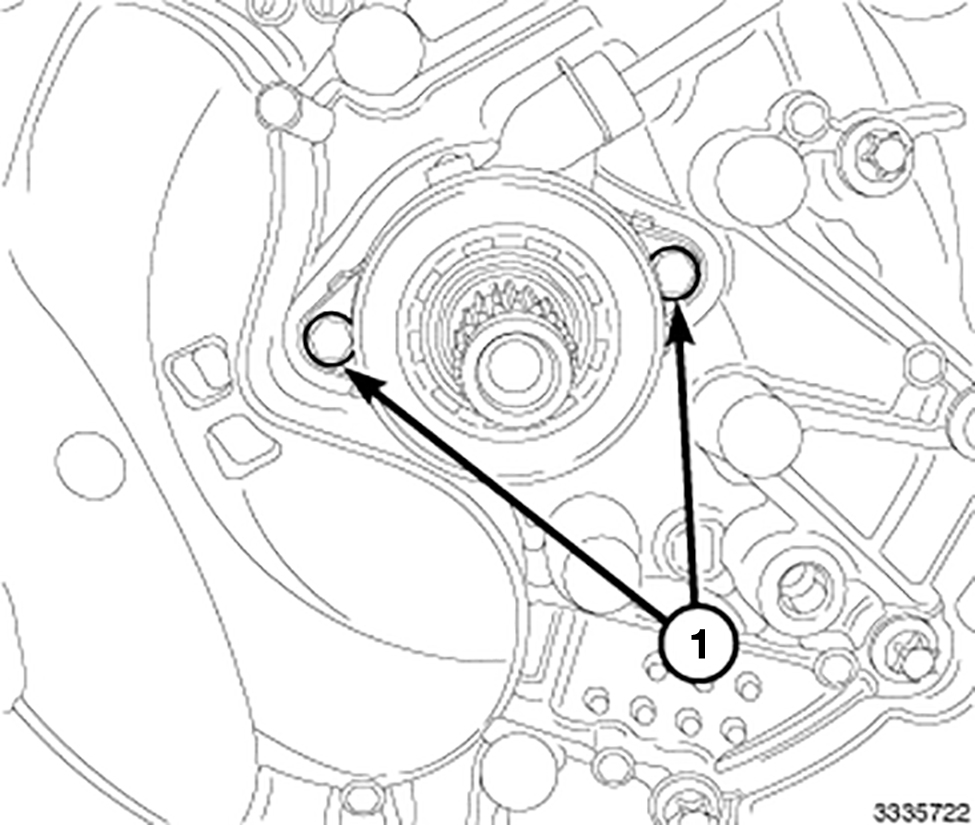

Remove the CSC bolts (2).

Courtesy of CHRYSLER GROUP, LLC

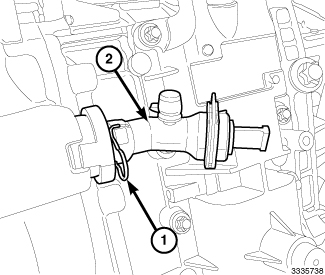

Disconnect the clutch tube union at the case. Release the retention clip (1) then separate the clutch tube union (2).

Courtesy of CHRYSLER GROUP, LLC

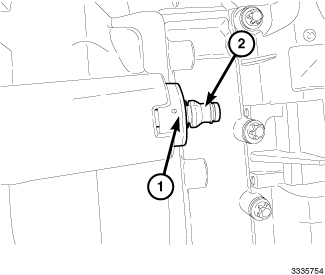

Disconnect the hydraulic fitting (2) from the plastic retainer (1).
Remove the CSC.

Courtesy of CHRYSLER GROUP, LLC

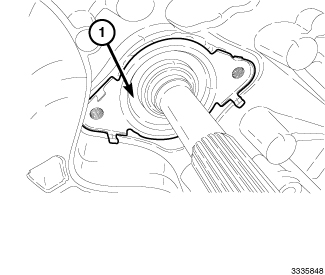

Remove the main shaft oil seal plate (1).

Courtesy of CHRYSLER GROUP, LLC

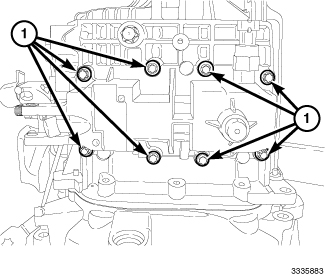

Remove the gear selector assembly bolts (1).
Use a plastic hammer or the equivalent to loosen the assembly and remove from the case.

Courtesy of CHRYSLER GROUP, LLC

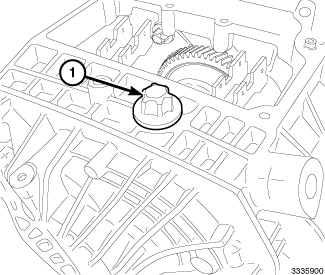

Remove the reverse idler gear assembly retaining bolt.
Remove the axle seals. Refer to SEAL, AXLE DRIVE SHAFT, REMOVAL AND INSTALLATION .

Courtesy of CHRYSLER GROUP, LLC

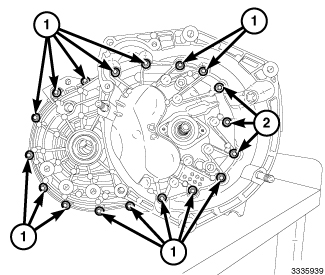

Remove the long case bolts (1) and the short case bolts (2).

Courtesy of CHRYSLER GROUP, LLC

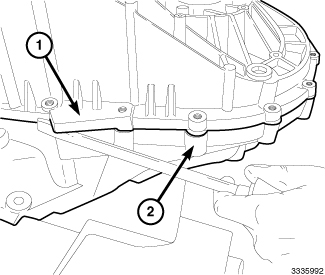

Separate the case halves by carefully prying on the gear side half (1) and the clutch housing side half (2).

Courtesy of CHRYSLER GROUP, LLC
Remove the reverse idler gear assembly (1).
Using a hydraulic press, remove the pin from the reverse gear mounting bracket.
Separate the reverse idler gear and the needle bearing.

Courtesy of CHRYSLER GROUP, LLC

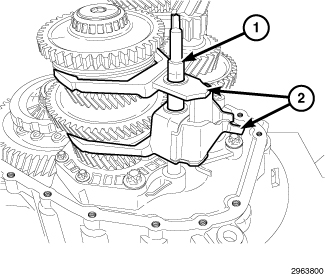

Remove the shifter fork pivot pin (1).
Remove the 3-4-reverse gear shifter fork assembly (2).

Courtesy of CHRYSLER GROUP, LLC

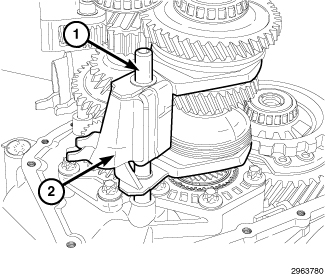

Remove the shifter fork pivot pin (1).
Remove the 1-2-5-6 gear shifter fork assembly (2).

Courtesy of CHRYSLER GROUP, LLC

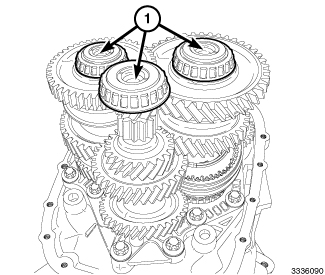

Remove the output and main shafts (1) as a group.

Courtesy of CHRYSLER GROUP, LLC

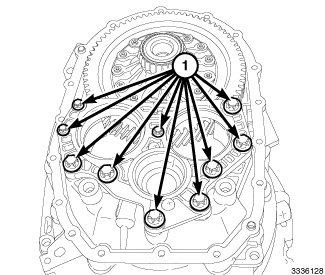

Remove the bearing race plate bolts.
NOTE:

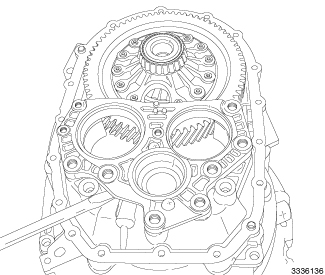

Use a screw drive or equivalent as an aid in releasing the plate from the locating bushings.

Courtesy of CHRYSLER GROUP, LLC
Remove the bearing race plate.

Courtesy of CHRYSLER GROUP, LLC

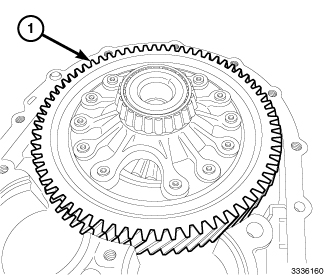

Remove the differential assembly (1).

Courtesy of CHRYSLER GROUP, LLC
Remove the magnet.

Courtesy of CHRYSLER GROUP, LLC
Remove the clutch housing side differential bearing race using the slide hammer (special tool #C-637, Slide Hammer, Universal) and bearing cup remover (special tool #9664, Remover, Bearing Cup).

Courtesy of CHRYSLER GROUP, LLC
Remove shaft bearing cup (2) using a press and the bearing cup installer (special tool #10302, Installer, Bearing Cup).
Remove the input shaft bearing cup (2) using (special tool #C-637, Slide Hammer, Universal) (special tool #9664, Remover, Bearing Cup).
Remove the output shaft bearing cup from the race mounting plate using a press and tools (special tool #D-111, Installer, Bearing Cup) (3), 10302.

Courtesy of CHRYSLER GROUP, LLC

NOTE:
Do not discard the shim as it will be utilized as the starting point for the bearing preload adjustment process.

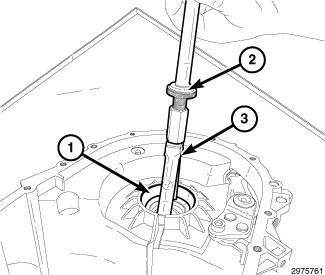

Remove the case side differential bearing race cups and shims (1) using (special tool #C-637, Slide Hammer, Universal) (special tool #9664, Remover, Bearing Cup) (3).

Courtesy of CHRYSLER GROUP, LLC

NOTE:
Document the location of each shim as they will be utilized as the starting point for the bearing preload adjustment process.

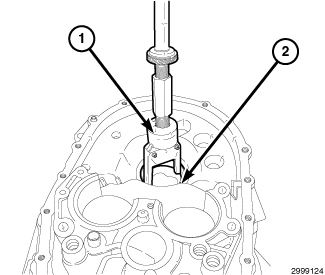

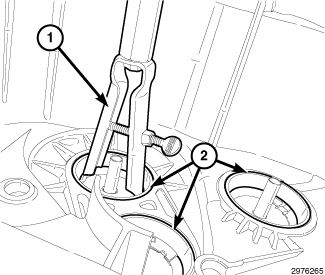

Remove the case side gear shaft bearing race cups and shims (2) using a Slide Hammer (special tool #C-637, Slide Hammer, Universal) and Bearing Cup Remover (special tool #9664, Remover, Bearing Cup) (1).

Courtesy of CHRYSLER GROUP, LLC

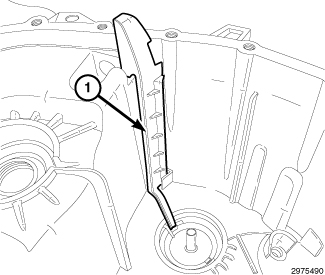

Remove the lubricating duct by pulling upward.

Courtesy of CHRYSLER GROUP, LLC

NOTE:
The oil ducts are staked to the case and may require some grinding before removal.

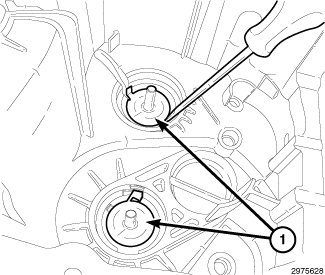

Remove the shaft oil ducts (1) from the case using a screwdriver or the equivalent.
