Night Vision Processing Module

WARNING: This page is about a different car, the 2021 Jeep Grand Cherokee L. However, it is still accessible from the selected car via links, so may be relevant.

REMOVAL

Remove the steering column opening cover. Refer to COVER, STEERING COLUMN OPENING, REMOVAL AND INSTALLATION .

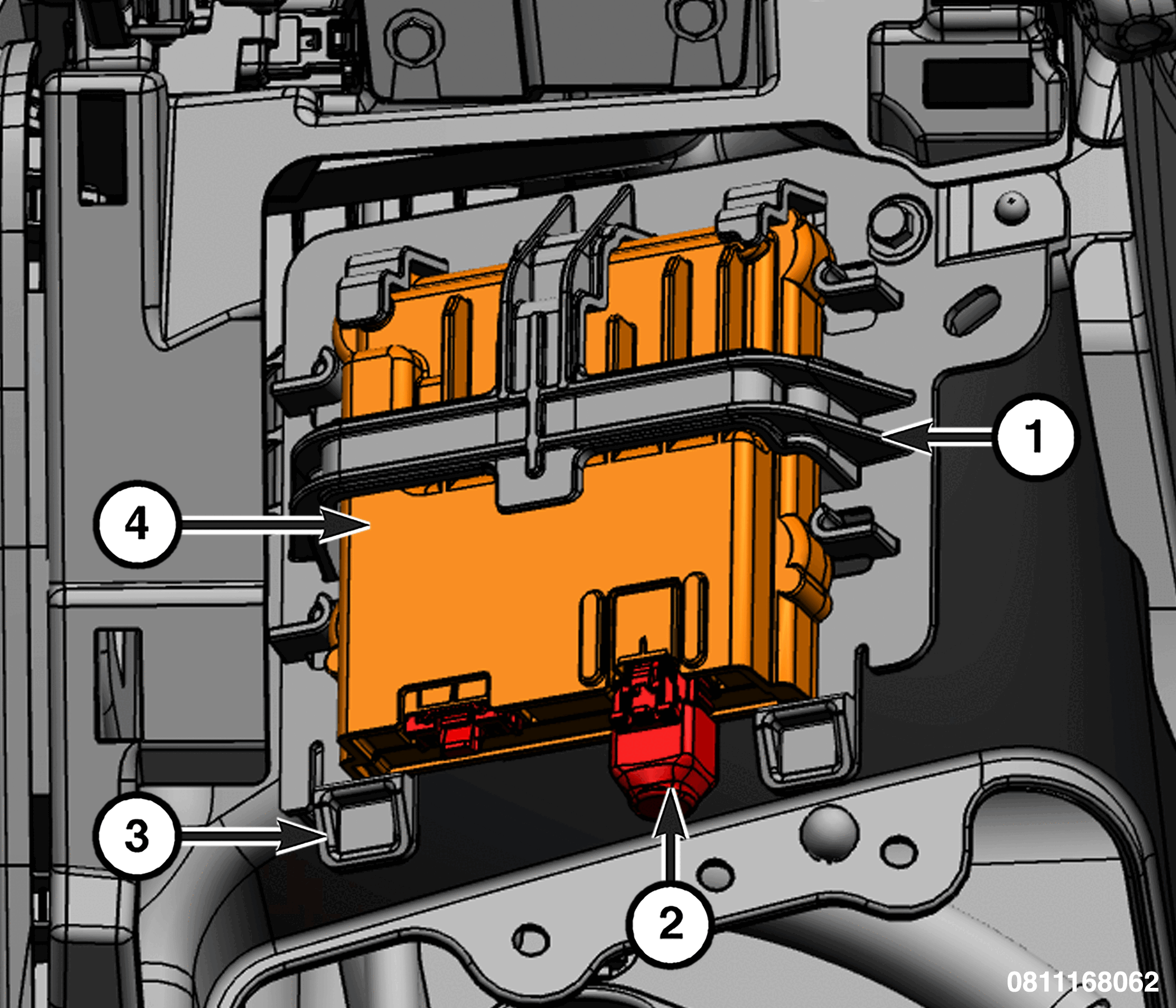

Courtesy of CHRYSLER GROUP, LLC

1 - Night Vision Processing Module Bracket

2 - Wire Harness Connectors

3 - Tabs

4 - Night Vision Processing Module

Disconnect the wire harness connectors from the Night Vision Processing Module (NVPM).
Disengage the tabs securing the NVPM to the NVPM bracket.

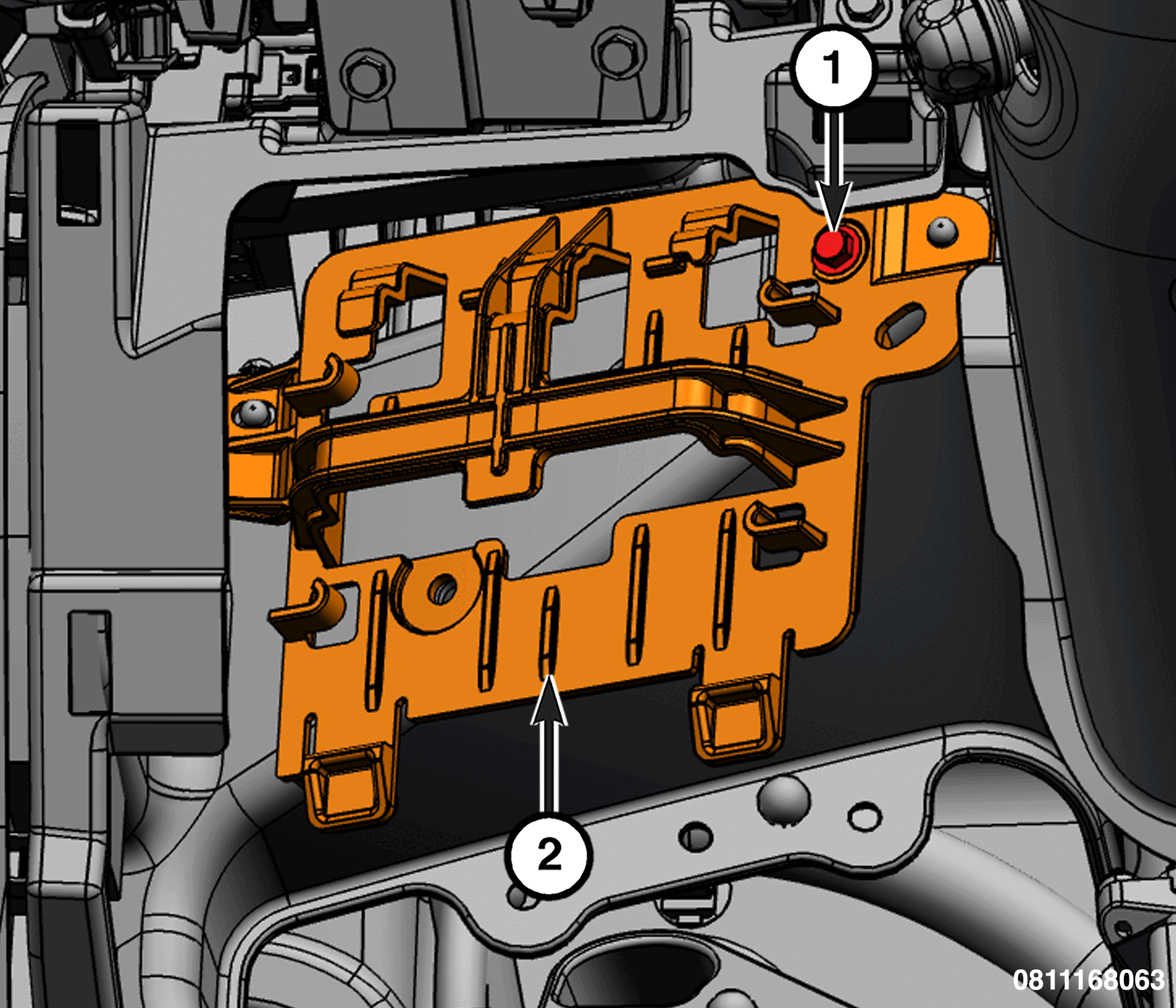

Courtesy of CHRYSLER GROUP, LLC

1 - Fastener

2 - Night Vision Processing Module Bracket
If required, remove the fastener securing the NVPM bracket to the instrument panel.

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle. The steps listed below are calling out specific procedures that should be followed during installation.

Tighten the fastener securely.
Perform the NVPM calibration routine. Refer to PROGRAMMING AND CALIBRATION .
