Module, Heated Seat (HSM): Installation
WARNING: This page is about a different car, the 2018 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Properly align the Heated Seat Module (HSM) retaining tabs to the bracket, prior to engagement. Failure to follow these instructions may result in damage to the HSM.

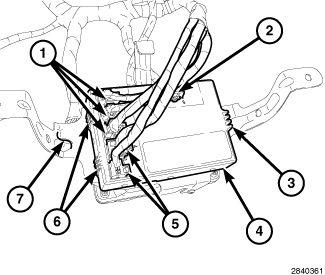

- Position the Heated Seat Module (HSM) (4) to the bracket (7) and engage the two retaining tabs (6). Make sure the retaining tabs are correctly engaged to the bracket.
- Engage the HSM retaining tab (3) to the bracket. Make sure the retaining tab is fully engaged to the bracket.
- Connect the electrical connectors (1, 2 and 5) to the HSM.

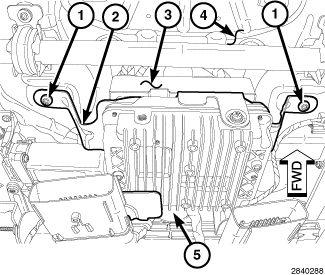

- Position the bracket (2) containing the HSM (3) to the underside of the seat cushion frame (4) and engage the metal bracket retaining tab (5) to the seat cushion frame.
- Install the two bolts (1) that secure the bracket to the underside of the seat cushion frame. Tighten the bolts securely.
- Install the seat Refer to SEAT, FRONT, INSTALLATION .
- Reconnect the negative battery cable.
Once the key is cycled to the ON position, the HSM will be configured to the vehicle. Check for DTCs and operation. If DTCs are present Refer to DIAGNOSTIC CODE INDEX .
