Cluster Hood, Lens And Mask

WARNING: This page is about a different car, the 2018 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
GC0158370Courtesy of CHRYSLER GROUP, LLC
  1. Position the cluster lens (2), over the face of the instrument cluster (1).
  2. Press firmly and evenly on the lens, until each of the latches are fully engaged around the perimeter of the cluster housing.

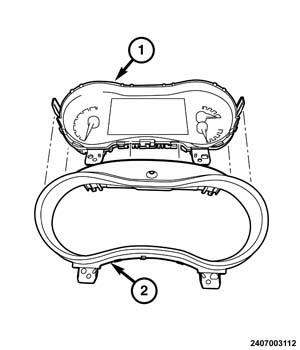

    GC0158377Courtesy of CHRYSLER GROUP, LLC
  3. Install the Instrument Cluster Bezel (2)

    Refer to BEZEL, INSTRUMENT CLUSTER, INSTALLATION .

  4. Install the instrument cluster into the instrument panel. Refer to CLUSTER ASSEMBLY .
  5. Connect the negative battery cable.
