Ambient Light Module
WARNING: This page is about a different car, the 2021 Jeep Grand Cherokee L. However, it is still accessible from the selected car via links, so may be relevant.

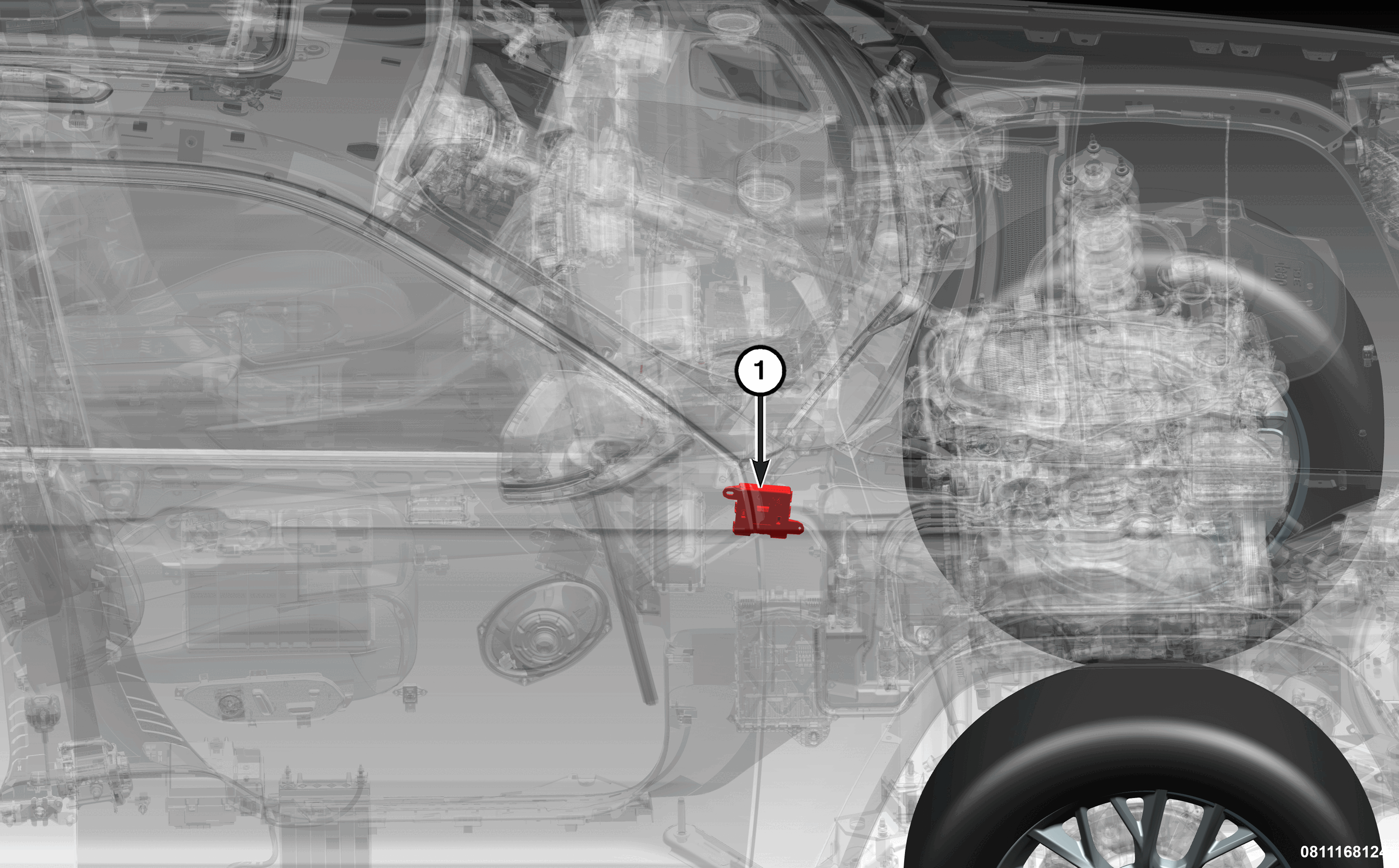

The Ambient Lighting Module (ALM) (1) is the Local Interface Network (LIN) master for the various ambient lights based on the color coordinates and intensities sent by the Display Screen Module (DSM) and the Body Control Module (BCM). The number, variety and behavior of the different colors/zones/themes will vary based on vehicle line and/or trim configuration. For information on the interior lighting scheme and operation. Refer to DESCRIPTION AND OPERATION .
