Removal And Installation: Left

WARNING: This page is about a different car, the 2021 Jeep Grand Cherokee L. However, it is still accessible from the selected car via links, so may be relevant.

REMOVAL

Remove the cowl trim panel. Refer to PANEL, COWL TRIM, REMOVAL AND INSTALLATION .

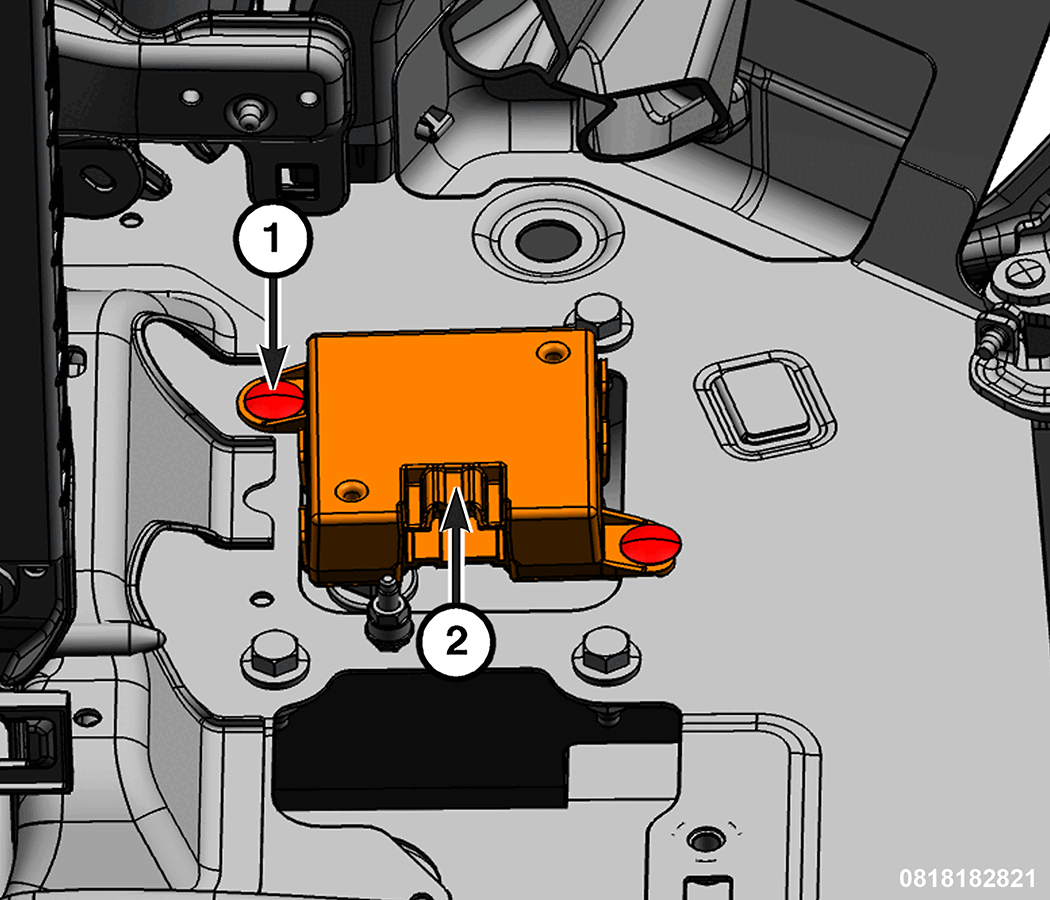

Courtesy of CHRYSLER GROUP, LLC

1 - Fasteners

2 - Ambient Light Module (ALM)
Remove the fasteners securing the Ambient Light Module (ALM) to the vehicle.
Disconnect the wire harness connector from the ALM then remove the ALM from the vehicle.

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle.
